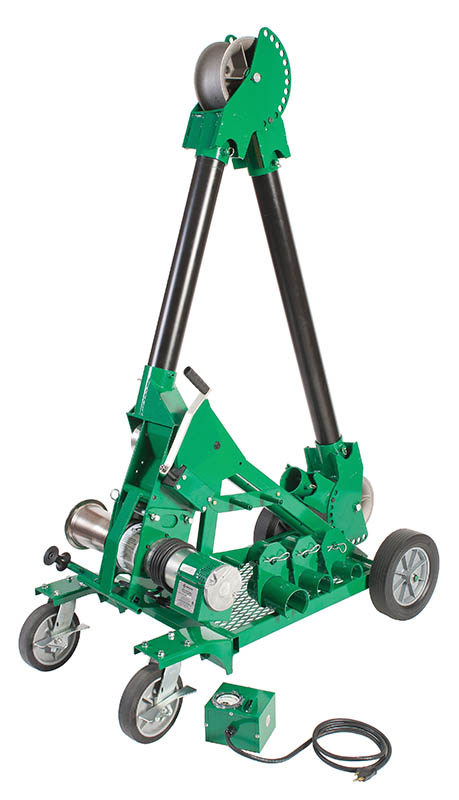

Greenlee® 6806 Ultra Tugger® 6800 Cable Puller Package With Mobile VersiBoom™ II, 6500 to 8000 lb, 7/8 in, 9 fpm at No Load
Cable Pullers - Powered
703868
MFG #: 6806
Greenlee®
10502.79000
/ ea
- Amperage Rating: 20 A
- Catalog Number: 6806
- Country of Origin: US
- Dimensions: 11-1/2 in L x 26 in W x 6-3/4 in H
- Gross Weight Per Pack: 479.0000 lb
- Load Rating: 8000 lb
- Number of Pulling Speeds: 5
- Power Rating: 1-1/2 hp
- Series: 6800
- Standards: ARRA Compliant
- Type: Double Braided
- UNSPSC: 39121722
- UPC 11: 78331000362
- UPC 12: 78331000362
- Voltage Rating: 115 VAC
- Stock Status: NONSTOCK
- Brand: Greenlee®
- Manufacturer: Greenlee Textron
- Bare Tool|Kit: Bare Tool
- Cable Diameter: 7/8 in
- Material: Polyester Composite
- Pulling Capacity: 6500 to 8000 lb
- Pulling Speed: 9 fpm at No Load
Greenlee® Ultra Tugger® Cable Puller Package, Bare Tool, Series: 6800, 6500 to 8000 lb Pulling, 5 Pulling Speeds, 9 fpm at No Load Pulling, 7/8 in Cable Dia, Load Rating: 32000 lb, 120 VAC, 20 A, 1-1/2 hp, 11-1/2 in L x 26 in W x 6-3/4 in H
- Catalog URL - IDW_DOCUMENT_1511873498783.pdf(Catalog URL)
- http://www.greenlee.com(Seller Home Page URL)
- Install Instructions URL - IDW_DOCUMENT_1520577594331.pdf(Install Instructions URL)
- Safety Data Sheet URL - ?f05bad6d-5855-11e4-bc08-c81f66f24c6b(Safety Data Sheet URL)
- Spec Sheet URL - 783310003625(Spec Sheet URL)
- Warranty URL - IDW_DOCUMENT_1520565405041.pdf(Warranty URL)
- Features
| 8,000 (35.8 kN) lbs. pulling force. Pulling speed ranges from 9 FTPM At 2,000 lbs. to 6 FTPM At 8,000 lbs. Mobile Versi-Boom system provides fast set-up with no anchors to set or chains to mount. Boom uses 3" rigid steel conduit for easy length adjustment to pull 10 to 20 feet (3 to 6 m) of cable out of the box fast and easy. Direct gear drive. Easy to move around job site with mobile carriage. |
| Mobile Versi-Boom™ system provides fast setup with no anchors to set or chains to mount |
| Boom uses 3 in rigid steel conduit for easy length adjustment to pull 10 to 20 ft of cable out of the box fast and easy |
| Direct gear drive |
| Easy to move around jobsite with mobile carriage |
| Patented |
| Double braided polyester composite pulling rope |
| 8 ft/min at 2000 lb, 7.5 ft/min at 4000 lb, 7 ft/min at 6000 lb and 6 ft/min at 8000 lb pulling speed |
| Pulling speed ranges from 9 FTPM at 2000 lb to 6 FTPM at 8000 lb |
| Boom uses 3 in rigid steel conduit for easy length adjustment to pull 10 to 20 ft (3 to 6 m) of cable out of the box fast and easy |
