Greenlee® 7906SB Hydraulic Driver-Punch
Cordless Knockout Punch Drivers
23833
MFG #: 7906SB
Greenlee®
1530.97000
/ ea
- Application: For punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics
- ARRA Compliant: Y
- Buy American Compliant: X
- Catalog Number: 7906SB

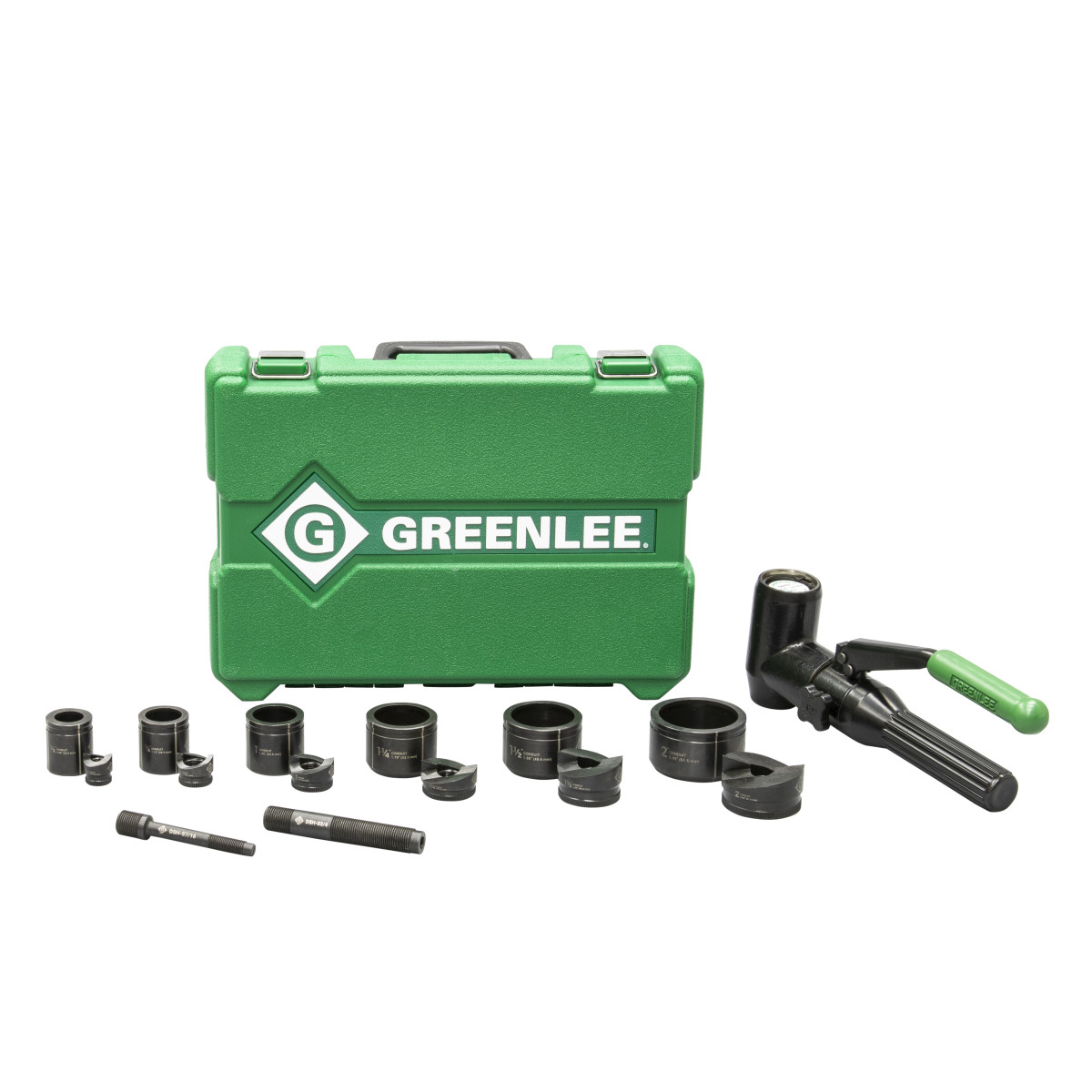

- Consist Of 1: Quick Draw Flex® knockout driver
- Consist Of 2: 1/2" - 2" conduit size Slug-Buster® punches
- Consist Of 3: 1/2" - 2" conduit size dies
- Consist Of 4: 7/16" short hydraulic draw stud
- Consist Of 5: 3/4" short hydraulic draw stud
- Country of Origin: USA
- Currency: USD
- EU RoHS Indicator: U
- Gross Volume Per Pack: 498.17
- Gross Volume per Pack Metric: 8163.56
- Gross Weight Per Pack: 17.6200 lb
- Gross Weight per Pack Metric: 7.99
- Harmonization Tariff Schedule Code: 8467891000
- Height: 4.05
- Height [Metric]: 10.2870
- Housing Material: Mild Steel
- Length: 16.00
- Length [Metric]: 40.6400
- Material: Punch up to 10 ga mild steel or 12 ga stainless steel.
- Size: 1/2" - 2" conduit size knockouts (hole size: 0.89" - 2.42" or 22.5 mm - 61.5 mm)
- Standards: ARRA Compliant
- Tool|Kit: Kit
- Type: 8-Ton Hydraulic Knockout Kit
- UNSPSC: 27113204
- UPC 11: 78331034300
- UPC 12: 78331034300
- Width: 12.70
- Width [Metric]: 32.2580
- Stock Status: NONSTOCK
- Brand: Greenlee®
- Manufacturer: Greenlee Textron
- For Conduit|Pipe Diameter: 1/2 to 2 in
- For Max Stainless Steel Thickness: 10 ga
Greenlee® Hydraulic Driver-Punch
- Brochure URL - 11142_1YRAG72DJSVIUN6X.pdf(Brochure URL)
- Brochure URL - vnt7hpdhxlxvvvmoi0gs.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_43f66bdfb4bcbb41a9a4b6b9d932b8793f6a858905ea091124c47114396c32ff.pdf(Catalog URL)
- http://www.greenlee.com(Seller Home Page URL)
- http://www.greenlee.com/(Seller Home Page URL)
- Install Instructions URL - Greenlee_7906SB_Installation_Instruction.pdf(Install Instructions URL)
- Owners Manual URL - 11142_R1H9LWPST6XMKYIF.pdf(Owners Manual URL)
- Owners Manual URL - pl31lslem8egrremzwwd.pdf(Owners Manual URL)
- Safety Data Sheet URL - ?f05bad6d-5855-11e4-bc08-c81f66f24c6b(Safety Data Sheet URL)
- Spec Sheet URL - 783310343004(Spec Sheet URL)
- Applications
- Features
| For punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics |
| Compact design for portability and fast, easy one-person operation. Slug-Buster® punch profile splits slugs for easy slug removal. Knurled edge on punches for better grip. New die design optimized for widest range of materials and drivers. Laser markings for quick part identification. Alignment markings for improved accuracy. Easy threading draw studs with "dog point" tip helps eliminate cross-threading. Hex key access for easy removal from tool. Works with all Greenlee knockouts up to 2". Flex Head allows for maximum flexibility in tight working areas. Punches, dies, draw studs and case made in the USA. Driver manufactured in the USA from US and global components. |
| Compact, lightweight design for portability and fast, easy one person operation |
| Quick Draw® 90's right angle driver head rotates over 180 deg for maximum flexibility in tight working areas |
| Can be used with non-round punches within the capacity of the tool |
| Alignment markings improve punching accuracy and productivity when making holes |
| Punches and dies are marked with catalog numbers and sizes for quick part identification |
| Develops 8 ton of hydraulic force for easy punching, even in 10 ga stainless steel, depending on individual punch capacities |
