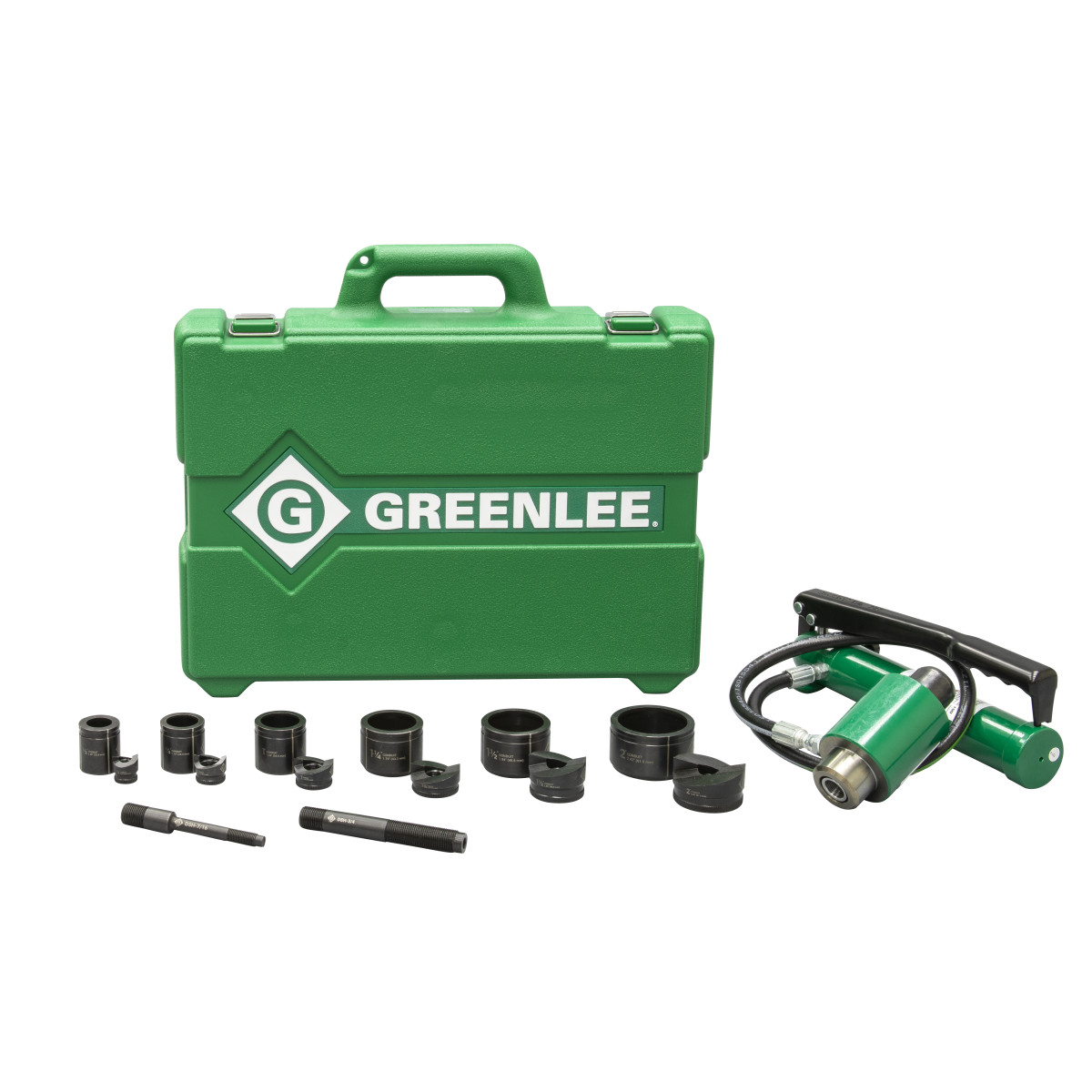

Greenlee® 7306SB Hydraulic Punch Set, 10 ga, Mild Steel
Cordless Knockout Punch Drivers
89745
MFG #: 7306SB
Greenlee®
1599.52000
/ ea
- Application: For punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics
- ARRA Compliant: Y
- Buy American Compliant: X
- Catalog Number: 7306SB
- Consist Of 1: 746A Ram and 767 Hand Pump
- Consist Of 2: 1/2" - 2" conduit size Slug-Buster® punches
- Consist Of 3: 1/2" - 2" conduit size dies
- Consist Of 4: 7/16" hydraulic draw stud
- Consist Of 5: 3/4" hydraulic draw stud
- Country of Origin: USA
- Currency: USD
- EU RoHS Indicator: U
- Gross Volume Per Pack: 1802.63
- Gross Volume per Pack Metric: 29539.91
- Gross Weight Per Pack: 22.9000 lb
- Gross Weight per Pack Metric: 11.02
- Harmonization Tariff Schedule Code: 8467891000
- Height: 5.25
- Height [Metric]: 13.3350
- Housing Material: Mild Steel
- Length: 19.75
- Length [Metric]: 50.1650
- Material: Punch up to 10 ga mild steel or 12 ga stainless steel.
- Maximum Operating Force: 11 t
- Size: 1/2" - 2" conduit size knockouts (hole size: 0.89" - 2.42" or 22.5 mm - 61.5 mm)
- Standards: ARRA Compliant
- Tool|Kit: Kit
- Type: 11-Ton Hydraulic Knockout Kit with Hand Pump
- UNSPSC: 27113204
- UPC 11: 78331034360
- UPC 12: 78331034360
- Width: 5.25
- Width [Metric]: 13.3350
- Stock Status: NORMALLY STOCKED
- Brand: Greenlee®
- Manufacturer: Greenlee Textron
- For Conduit|Pipe Diameter: 1/2 in
- For Max Stainless Steel Thickness: 10 ga
Greenlee® Hydraulic Punch Set, Punch Capacity: 10 ga, Mild Steel Housing
- Brochure URL - 11142_1YRAG72DJSVIUN6X.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_43f66bdfb4bcbb41a9a4b6b9d932b8793f6a858905ea091124c47114396c32ff.pdf(Catalog URL)
- http://www.greenlee.com/(Seller Home Page URL)
- Install Instructions URL - IDW_DOCUMENT_1520577594331.pdf(Install Instructions URL)
- Safety Data Sheet URL - ?f05bad6d-5855-11e4-bc08-c81f66f24c6b(Safety Data Sheet URL)
- Spec Sheet URL - 783310343608(Spec Sheet URL)
- Applications
- Features
| For punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics |
| Compact lightweight design for portability and fast, easy one-person operation. Slug-Buster® punch profile splits slugs for easy slug removal. Knurled edge on punches for better grip. New die design optimized for widest range of materials and drivers. Laser markings for quick part identification. Alignment markings for improved accuracy. Easy threading draw studs with "dog point" tip helps eliminate cross-threading. Hex key access for easy removal from tool. Works with all Greenlee knockouts. Same draw studs used with Intelli-PUNCH™, LS50L2 and 746A ram. Punches, dies, draw studs and case made in the USA. Driver manufactured in the USA from US and global components |
| Fast, easy and simple to operate |
| Compact design for field use on construction sites and maintenance jobs |
| Punches 10X faster than wrench method |
| Will also drive 751 cable cutter head |
| Can be used with most standard round, Slug-Buster® and Slug-Splitter® SC® punch sizes |
| Can be used with non-round punches within the capacity of the tool |
| Powerful 11 ton hydraulic ram |
| Alignment markings improve punching accuracy and productivity when making holes |
| Punches and dies are marked with catalog numbers and sizes for quick part identification |
| 8 pieces |
