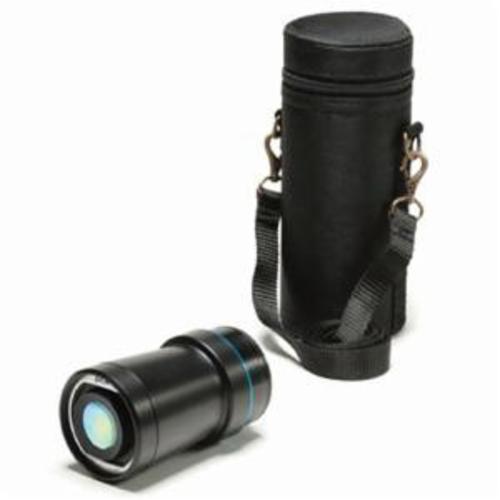

FLIR® T198065 Wide Angle Infrared Lens With Case, 80 x 64.4 deg (92.8 deg Diagonally) Field of View, 6.5 mm L Focal
Custom_Product_Images_Illustration
FLIR® T198065 Wide Angle Infrared Lens With Case, 80 x 64.4 deg (92.8 deg Diagonally) Field of View, 6.5 mm L Focal
SKU872082
MFGR #T198065
$/ea
FLIR® Infrared Lens, Wide Angle, For Use With: T-Series T640 and T640bx Thermal Imaging Infrared Camera, 80 x 64.4 deg (92.8 deg Diagonally) Field of View, 6.5 mm L Focal, Nylon, 4.96 in L x 2.64 in D
FLIR® Infrared Lens, Wide Angle, For Use With: T-Series T640 and T640bx Thermal Imaging Infrared Camera, 80 x 64.4 deg (92.8 deg Diagonally) Field of View, 6.5 mm L Focal, Nylon, 4.96 in L x 2.64 in D
Catalog Number T198065 Country of Origin SWE Gross Weight Per Pack 1.5000 lb UNSPSC 45121612 UPC 11 84518800441 UPC 12 84518800441 Stock Status NONSTOCK Brand Extech® Manufacturer FLIR Systems This wide angle lens has a field of view almost double of that of the standard 25 deg lens This lens is suitable for cramped situations where the operator can not step further back from the object 65 mm min focus distance 2.62 mrad spatial resolution (ifov) Automatic lens identification 1.0 f-number 5 asph lenses 5% distortion Mtf at 70% of fov - normal requirements 52% 25 mm dia front lens
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | T198065 |
| Country of Origin | SWE |
| Gross Weight Per Pack | 1.5000 lb |
| UNSPSC | 45121612 |
| UPC 11 | 84518800441 |
| UPC 12 | 84518800441 |
| Stock Status | NONSTOCK |
| Brand | Extech® |
| Manufacturer | FLIR Systems |
| This wide angle lens has a field of view almost double of that of the standard 25 deg lens |
| This lens is suitable for cramped situations where the operator can not step further back from the object |
| 65 mm min focus distance |
| 2.62 mrad spatial resolution (ifov) |
| Automatic lens identification |
| 1.0 f-number |
| 5 asph lenses |
| 5% distortion |
| Mtf at 70% of fov - normal requirements 52% |
| 25 mm dia front lens |
