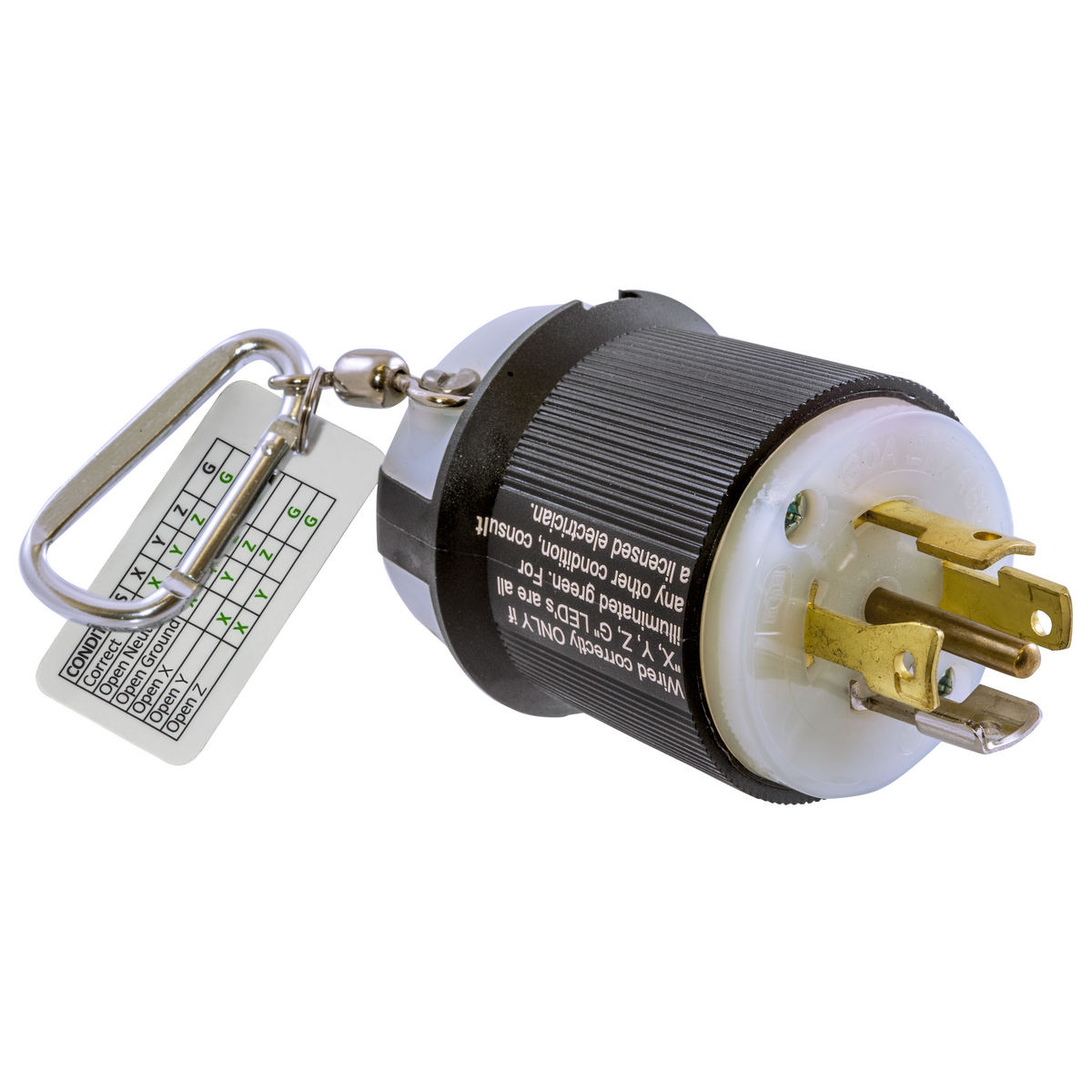

Hubbell Wiring Device-Kellems Twist-Lock® HBLT2711 3-Pole 1-Phase 4-Wire Grounding Standard Sized Circuit Tester, 125/250 VAC, 30 A Load Current, NEMA L14-30P
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® HBLT2711 3-Pole 1-Phase 4-Wire Grounding Standard Sized Circuit Tester, 125/250 VAC, 30 A Load Current, NEMA L14-30P
SKU942681
MFGR #HBLT2711
Your Cost: $117.81/ea
The Hubbell Twist-Lock® Tester is an exclusive patented design that easily tests the circuit condition without the need for traditional measurement techniques. Whether it is a contractor, electrician, or entertainment stage crew, knowing that power is present at any receptacle or connector is critical. By plugging the tester into an outlet, an LED output will immediately provide the state of the circuit. An easy to read card is provided with the tester, to help determine if the connections are made properly and in the correct position. This unique NEMA configuration ensures that the proper connection was made through an easy to read output display. It also easily attaches to a tool belt so it is available when needed.
The Hubbell Twist-Lock® Tester is an exclusive patented design that easily tests the circuit condition without the need for traditional measurement techniques. Whether it is a contractor, electrician, or entertainment stage crew, knowing that power is present at any receptacle or connector is critical. By plugging the tester into an outlet, an LED output will immediately provide the state of the circuit. An easy to read card is provided with the tester, to help determine if the connections are made properly and in the correct position. This unique NEMA configuration ensures that the proper connection was made through an easy to read output display. It also easily attaches to a tool belt so it is available when needed.
Amperage Rating 30 A Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBLT2711 Color Black/White Cord Type None Country of Origin PR Currency USD Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator C Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9030333400 Height 2.42 in Height [Metric] 6.1417 cm Indicator LED Length 3.98 in Length [Metric] 10.1041 cm Material Composite Mounting PLUG-IN NEMA Rating L14-30P Number Of Poles 3 Number of Wires 4 Phase 1 Returnable N Size Standard Sized Standard UL498 Standards ARRA CompliantBuy American Act CompliantUL 498 Sub Brand Twist-Lock Type Circuit Tester UNSPSC 39121402 UPC 11 78358546863 UPC 12 783585468631 Wattage 7,500 W Width 2.42 in Width [Metric] 6.1417 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Enclosure Type NEMA L14-30P Load Current 30 A Voltage Rating 125/250 V Industrial/Commercial Standard Product Easy to read LED output and condition tables Insulgrip® nylon housing for secure gripping Carabiner style clip to secure to work belt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Amperage Rating | 30 A |
Application | Industrial/Commercial |
ARRA Compliant | C |
Buy American Compliant | C |
Catalog Number | HBLT2711 |
Color | Black/White |
Cord Type | None |
Country of Origin | PR |
Currency | USD |
Environmental Conditions | Indoor Dry unless protected by additional means |
EU RoHS Indicator | C |
Gross Weight Per Pack | 0.4000 lb |
Gross Weight per Pack Metric | 0.18 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 9030333400 |
Height | 2.42 in |
Height [Metric] | 6.1417 cm |
Indicator | LED |
Length | 3.98 in |
Length [Metric] | 10.1041 cm |
Material | Composite |
Mounting | PLUG-IN |
NEMA Rating | L14-30P |
Number Of Poles | 3 |
Number of Wires | 4 |
Phase | 1 |
Returnable | N |
Size | Standard Sized |
Standard | UL498 |
Standards | ARRA CompliantBuy American Act CompliantUL 498 |
Sub Brand | Twist-Lock |
Type | Circuit Tester |
UNSPSC | 39121402 |
UPC 11 | 78358546863 |
UPC 12 | 783585468631 |
Wattage | 7,500 W |
Width | 2.42 in |
Width [Metric] | 6.1417 cm |
Stock Status | NONSTOCK |
Brand | Hubbell Wiring Device-Kellems |
Manufacturer | Hubbell |
Enclosure Type | NEMA L14-30P |
Load Current | 30 A |
Voltage Rating | 125/250 V |
Industrial/Commercial |
Standard Product |
Easy to read LED output and condition tables |
Insulgrip® nylon housing for secure gripping |
Carabiner style clip to secure to work belt |
