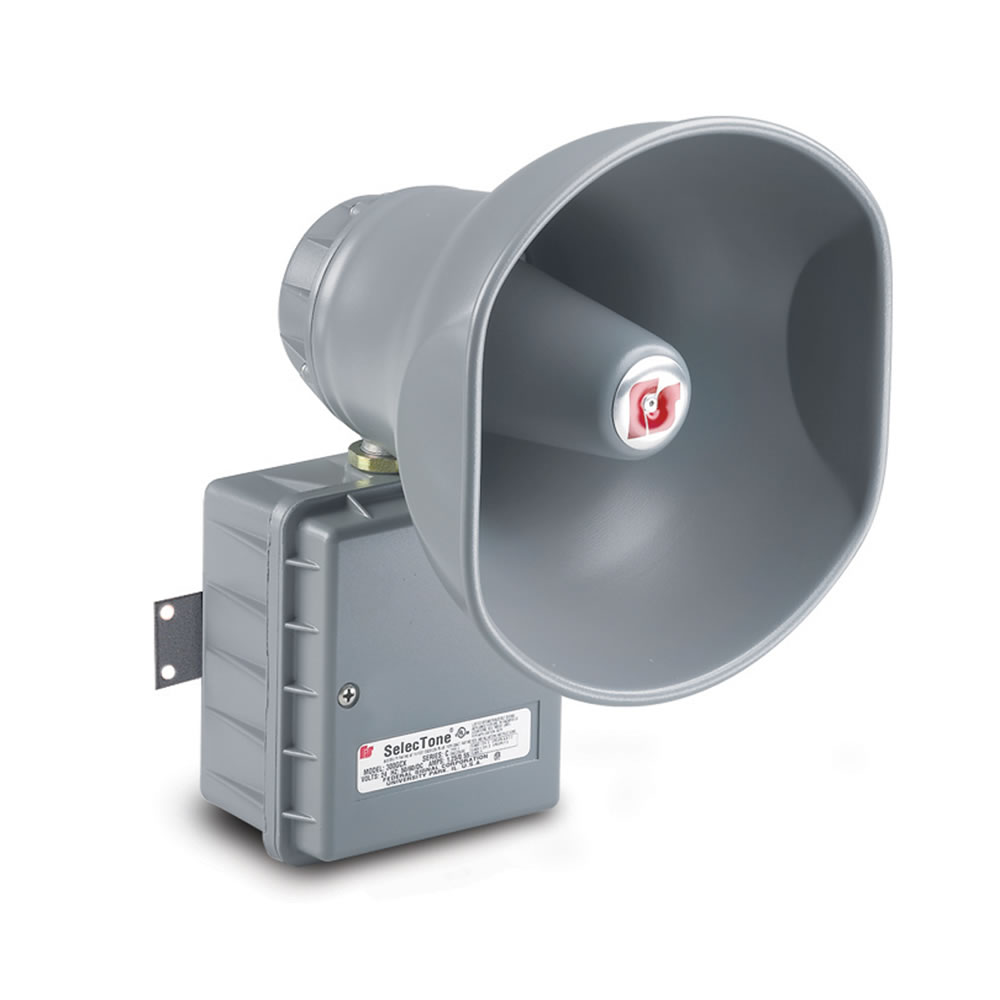

Federal Signal 300GCX-120 SelecTone® 300GCX Audible Signaling Device, 120 VAC, 0.2 A, 120/110 dB, Surface Mount, Gray
Explosion Proof Speakers
282327
MFG #: 300GCX-120
Federal Signal
1629.64000
/ ea
- Application: Indoor/Outdoor
- ARRA Compliant: C
- Buy American Compliant: C
- Cable Entry Size: 1/2-Inch NPT
- Catalog Number: 300GCX-120
- Color: Gray
- Country of Origin: US
- Currency: USD
- Dimensions: 12.4 H x 7.9 W x 8.5 D in
- EU RoHS Indicator: N
- Gross Weight Per Pack: 7.1000 lb
- Gross Weight per Pack Metric: 3.22
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8518210000
- Height: 10.50 in
- Height [Metric]: 26.6700 cm
- Length: 10.25 in
- Length [Metric]: 26.0350 cm
- Loudness: 0 to 110 DB
- Material: Die-Cast Aluminum
- Mounting: Surface
- Operating Current: 0.2 A
- Operating Temperature: -67 to 150 °F
- Operating Voltage: 120VAC 50-60Hz
- Standard: UL Listed/cUL Listed/CSFM Approved
- Standards: ARRA CompliantBuy American Act Compliant
- Sub Brand: SelecTone
- Termination: Terminal Block
- Type: Hazardous Location Amplified Speaker
- UNSPSC: 46171602
- UPC 11: 78297920037
- UPC 12: 782979200376
- Width: 14.00 in
- Width [Metric]: 35.5600 cm
- Stock Status: NONSTOCK
- Brand: Federal Signal
- Manufacturer: Federal Signal
Federal Signals Model 300GCX SelecTone® Speaker Amplifier is designed to produce tones, digital voice messages and live public address in harsh environments with high ambient noise levels.
- Brochure URL - 11354_X59N12WQ0JAPRY8U.pdf(Brochure URL)
- http://www.federalsignal-indust.com(Seller Home Page URL)
- https://www.fedsig.com(Seller Home Page URL)
- Line Drawing URL - 11354_132T5YBEPCN0Q7ZI.pdf(Line Drawing URL)
- Line Drawing URL - CS_300GCX_0220.pdf(Line Drawing URL)
- Tech Drawing URL - CS_300GCX_REV073113.pdf(Tech Drawing URL)
- Warranty URL - 11354_EJ7HRKIUFQZ3YC51.pdf(Warranty URL)
- Applications
- Features
| Indoor/Outdoor |
| Digital Signal Amplification |
| Reliable, solid-state circuitry |
| Digital signal amplification |
| Fused input and output |
| Type 4X enclosure |
| Built-in gain control, adjustable between 0 dBA to 110 dBA at 10 ft (0 dBA to 120 dBA at 1 m) |
| Internal circuitry, tone module, and gain control are contained in a housing constructed of die-cast aluminum |
| All surfaces are sealed with powder coat paint |
| Dust and moisture-proof gaskets provide protection from the elements |
| SelecTone speaker amplifiers are used individually or as part of a plant-wide emergency notification system |
| For plant-wide signaling, a connector kit is installed into each SelecTone speaker amplifier and wired to a central controller |
| SelecTone command units and commcenter digital message centers broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone speaker amplifiers |
| Hazardous Location |
| External mounting tabs |
| Fused input and output |
| Reliable solid-state circuitry |
| Built-in gain control |
| 120/110 dB at 1 m/10 ft sound level |
| 30 mA standby current |
