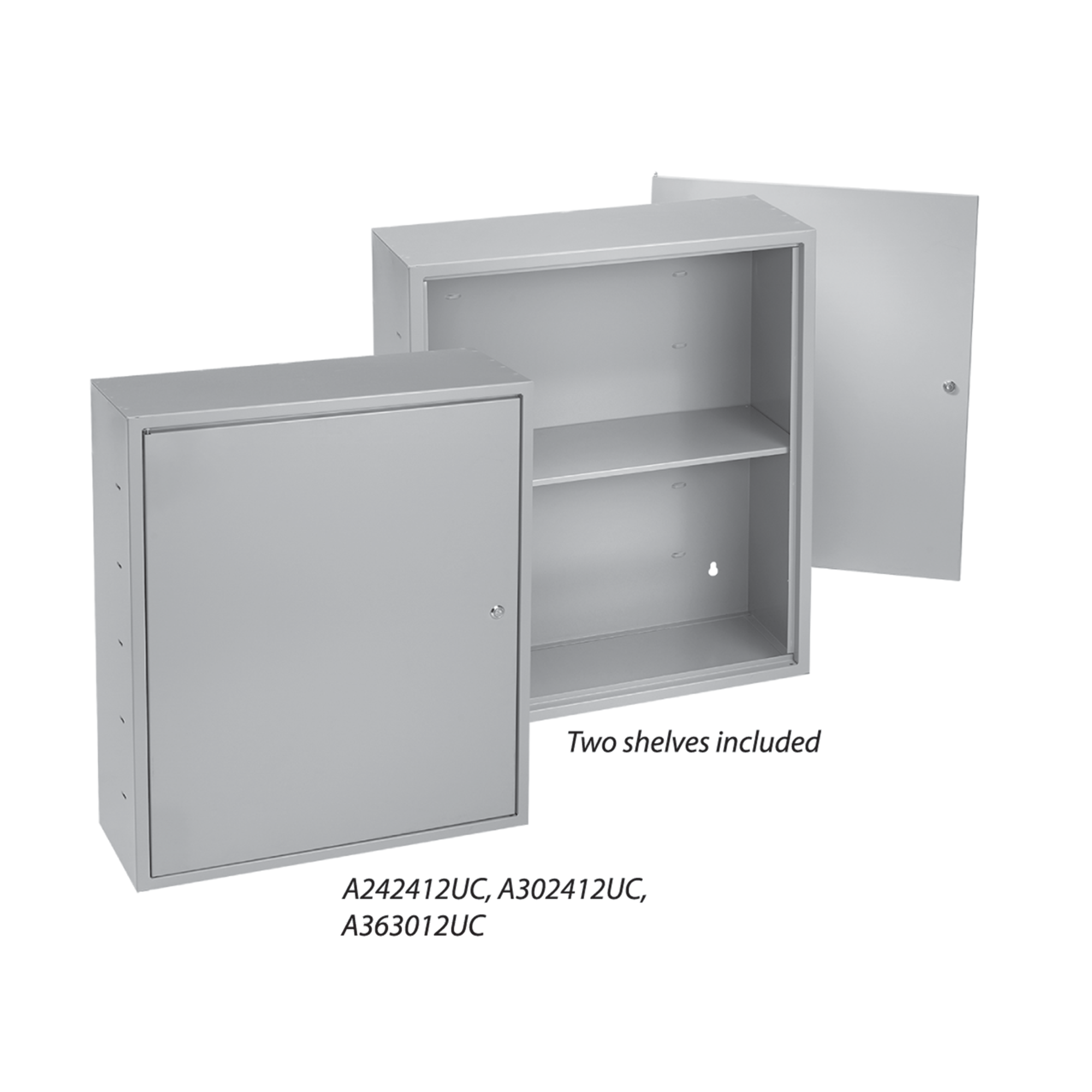

nVent HOFFMAN A242412UC A1UC Locking Shelf Model Utility Cabinet, 24 in L x 24 in W x 12 in D, NEMA 1/IP30 NEMA Rating, Steel
Lockout Boxes
475469
MFG #: A242412UC
nVent HOFFMAN
415.71000
/ ea
- Application: Power Distribution
- ARRA Compliant: C
- Assemble to Order: No
- Buy American Compliant: C
- Catalog Number: A242412UC
- Color Code: ANSI 61
- Country of Origin: MX
- Currency: USD
- EU RoHS Indicator: C
- Finish: Powder Coated
- Gross Volume Per Pack: 6.66
- Gross Volume UOM: FC
- Gross Weight Per Pack: 53.6000 lb
- Gross Weight per Pack Metric: 26.76
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7326908688
- Height [Metric]: 34.2900 cm
- Interchangeable: No
- IP Rating: IP30
- Item Group: A1UC
- Length: 33.75 in
- Length [Metric]: 85.7250 cm
- Material: Mild Steel
- Modification Services: Yes
- Mounting [Metric]: 406 mm
- Mounting Holes: 16
- NEMA Rating: 1 Indoor, electrical protection
- Package Quantity: 1
- Returnable: Y
- Shipping Weight: 54 lb
- Size: 24.00x24.00x12.00 in
- Thickness: 16 ga
- Thickness [Metric]: 1.52 mm
- Type: Wall-Mounted / Pad-Mounted Enclosures
- UNSPSC: 39121902
- UPC 11: 78351014761
- UPC 12: 783510147617
- Width [Metric]: 64.1350 cm
- Stock Status: NONSTOCK
- Brand: nVent HOFFMAN
- Manufacturer: HOFFMAN ENCLOSURES
- Color: Gray
- Height: 13.50 in
- Width: 25.25 in
nVent HOFFMAN Utility Cabinet, Locking Shelf Model, Series: A1UC, 24 in Length, 24 in Width, 12 in Depth, NEMA 1/IP30, 21.9 x 21.9 in Door, Keyed Lock, Wall Mount, Steel, Polyester Powder Painted, Gray
- Compliance Cert 1 URL - Hoffman_A12122UC_Compliance Certificate_1.pdf(Compliance Cert 1 URL)
- Compliance Cert URL - Hoffman_A12126T1PP_Compliance Certificate.pdf(Compliance Cert URL)
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - stream_document.aspx?rRID=115466&pRID=71245(Install Instructions 1 URL)
- Spec Sheet URL - Spec-00163.pdf(Spec Sheet URL)
- Tech Drawing URL - 87797834.gif(Tech Drawing URL)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Power Distribution |
| 16 or 14 gauge steel |
| Four mounting keyholes in back of enclosure |
| Key hook and shelf models of this cabinet protect fuses and other components and can be equipped with a combination lock for applications that require security |
| Shelf cabinets provide a level of security for storage of equipment, fuses, and other components |
| Two shelves included with shelf models are easily adjusted without tools by placing tabs in slots located on enclosure sides |
| Use as a key cabinet or a hanging locker to organize items that require a level of security |
| Key hook model has integral hooks assembled in door and back of enclosure |
| Removable door with reversible hinge door can hinge from either left or right side and can be changed without tools |
| Door has quarter turn key lock |
| Combination lock is available as an accessory and is interchangeable with standard cutout and latch cam |
| Retractable spring hinge |
