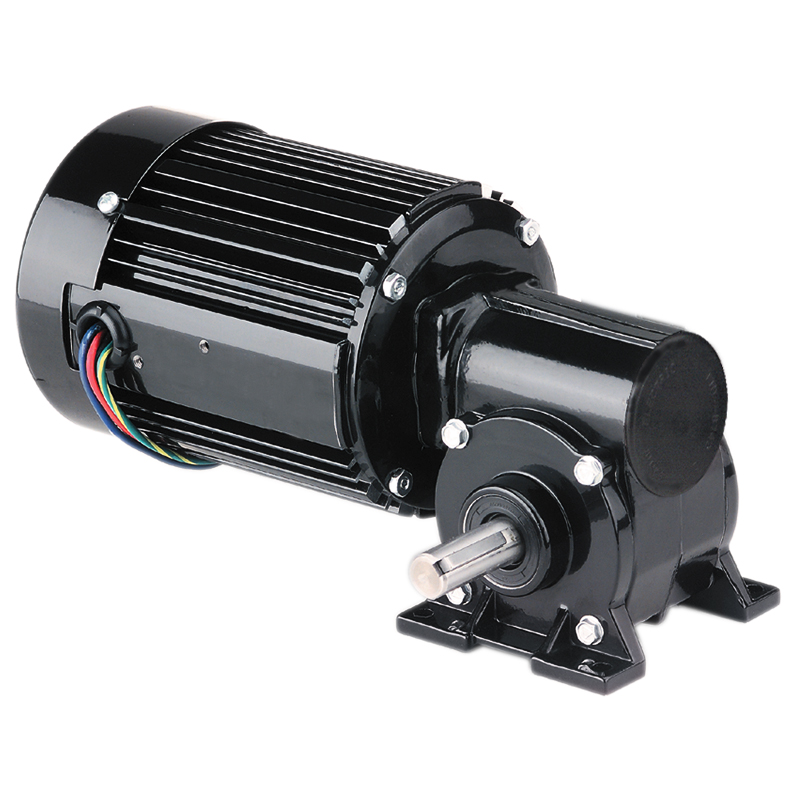

Bodine 2872 Pacesetter 42R-5N Right Angle AC Inverter Duty Gearmotor 42R6BFPP-5N
Bodine 2872 Pacesetter 42R-5N Right Angle AC Inverter Duty Gearmotor 42R6BFPP-5N
SKU748476
MFGR #2872
Your Cost: $901.94/ea
BODINE 2872 42R6BFPP-5N / inverter duty / 230/460
BODINE 2872 42R6BFPP-5N / inverter duty / 230/460
Application Face mount, or mounted from bottom of gearhead, standard.We offer most standard models with either 230 VAC, 60Hz, 3-phase, or 230/460 VAC, 60 Hz, 3-phase winding options. Catalog Number 2872 Enclosure Type TEFC (Totally Enclosed Fan Cooled) Frequency Rating 60 Full Load Current 1.9 A Harmonization Code 8501.51.3020 Insulation Class F IP Rating IP20 Motor Power AC Mounting Type Foot NEMA Frame Size 42R Optional Accessories Die cast terminal box kit model 5982 achieves IP-44 rating. Phase 3 pH Shaft Type Right Angle Stage 1 Standard CSA;CURUS;ROHS;UL Supply Voltage 460 V Stock Status NONSTOCK Brand Bodine Electric Company Manufacturer Bodine Electric Company Gear Ratio 20:1 Horsepower 3/8 Face mount, or mounted from bottom of gearhead, standard.We offer most standard models with either 230 VAC, 60Hz, 3-phase, or 230/460 VAC, 60 Hz, 3-phase winding options. -Quintsulation™5-stage insulation system designed to meet NEMA MG 1-1993, Section IV, Part 31--Variable speed, 3-phase design for operation with a wide range of inverter (AC drive) products--Inverter-Grade magnet wire and Class "F" insulation system for increased protection against spikes and corona damage caused by the inverter--All new optimized motor and gearhead combinations for maximum output power in the smallest package--UL recognized for construction (cURus), and in compliance with the Low Voltage Directive "CE"--Totally enclosed, non-ventilated IP-20 rating. IP-44 with optional t-box kit installed--Aluminum endshields for high thermal efficiency and light weight--Unvented gearhousing for universal horizontal mounting--Industrial lip type seals on motor and output shafts--Ball bearings on output shaft for increased radial load capacity and long life--Permanently lubricated, maintenance free operation--Double-reduction worm gearing allows for high gear ratios in compact package--Bronze worm gears for high shock load capability--Hardened and ground worm gear hobbed on the motor shaft for high strength and long life
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | Face mount, or mounted from bottom of gearhead, standard.We offer most standard models with either 230 VAC, 60Hz, 3-phase, or 230/460 VAC, 60 Hz, 3-phase winding options. |
Catalog Number | 2872 |
Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
Frequency Rating | 60 |
Full Load Current | 1.9 A |
Harmonization Code | 8501.51.3020 |
Insulation Class | F |
IP Rating | IP20 |
Motor Power | AC |
Mounting Type | Foot |
NEMA Frame Size | 42R |
Optional Accessories | Die cast terminal box kit model 5982 achieves IP-44 rating. |
Phase | 3 pH |
Shaft Type | Right Angle |
Stage | 1 |
Standard | CSA;CURUS;ROHS;UL |
Supply Voltage | 460 V |
Stock Status | NONSTOCK |
Brand | Bodine Electric Company |
Manufacturer | Bodine Electric Company |
Gear Ratio | 20:1 |
Horsepower | 3/8 |
Face mount, or mounted from bottom of gearhead, standard.We offer most standard models with either 230 VAC, 60Hz, 3-phase, or 230/460 VAC, 60 Hz, 3-phase winding options. |
-Quintsulation™5-stage insulation system designed to meet NEMA MG 1-1993, Section IV, Part 31--Variable speed, 3-phase design for operation with a wide range of inverter (AC drive) products--Inverter-Grade magnet wire and Class "F" insulation system for increased protection against spikes and corona damage caused by the inverter--All new optimized motor and gearhead combinations for maximum output power in the smallest package--UL recognized for construction (cURus), and in compliance with the Low Voltage Directive "CE"--Totally enclosed, non-ventilated IP-20 rating. IP-44 with optional t-box kit installed--Aluminum endshields for high thermal efficiency and light weight--Unvented gearhousing for universal horizontal mounting--Industrial lip type seals on motor and output shafts--Ball bearings on output shaft for increased radial load capacity and long life--Permanently lubricated, maintenance free operation--Double-reduction worm gearing allows for high gear ratios in compact package--Bronze worm gears for high shock load capability--Hardened and ground worm gear hobbed on the motor shaft for high strength and long life |
