Baldor-Reliance

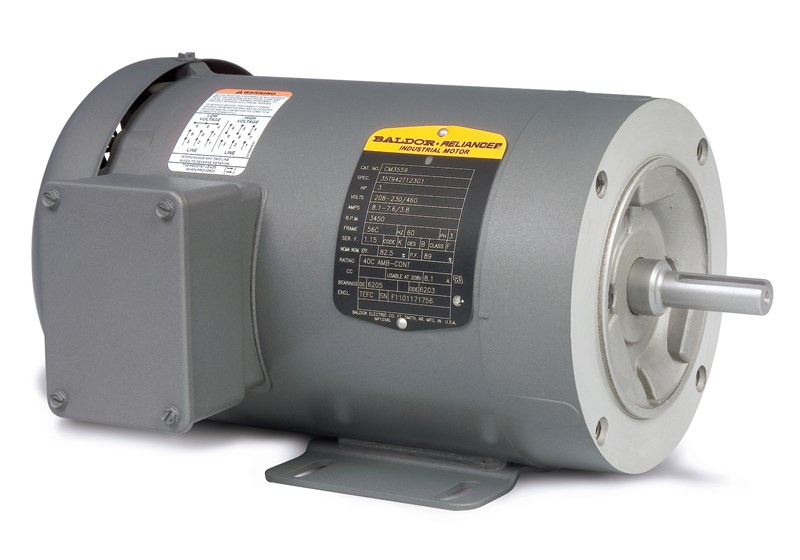

Baldor-Reliance CM35381/2HPNEMA-CFACEMTR CM3538 AC Motor, 230/460 VAC, 1/2 A, 56 Frame, 0.5 hp, 1725 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance CM35381/2HPNEMA-CFACEMTR CM3538 AC Motor, 230/460 VAC, 1/2 A, 56 Frame, 0.5 hp, 1725 rpm
SKU158907
MFGR #CM3538
Your Cost: $449.13/ea
List: Baldor-Reliance AC Motor, 230/460 VAC, 1/2 A, 60 Hz, 0.5 hp, 3, 1725 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 11.35 in L x 9.28 in W x 6.34 in H
Baldor-Reliance AC Motor, 230/460 VAC, 1/2 A, 60 Hz, 0.5 hp, 3, 1725 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 11.35 in L x 9.28 in W x 6.34 in H
Application General Purpose Base Rigid Catalog Number CM3538 Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 23.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UL Listed, RoHS Compliant, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156811012 UPC 12 78156811012 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 56 Full Load Current 1/2 A Horsepower 0.5 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,725 rpm Voltage Rating 230/460 V General Purpose .5HP,1725RPM,3PH,60HZ,56C,3416M,TEFC,F1 Pressure cast aluminum end plates with ribbed design for rigidity Locked drive end bearing Heavy gauge steel frame 63 power factor Rigid base Continuous duty
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General Purpose |
| Base | Rigid |
| Catalog Number | CM3538 |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 23.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UL Listed, RoHS Compliant, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156811012 |
| UPC 12 | 78156811012 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 56 |
| Full Load Current | 1/2 A |
| Horsepower | 0.5 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,725 rpm |
| Voltage Rating | 230/460 V |
| General Purpose |
| .5HP,1725RPM,3PH,60HZ,56C,3416M,TEFC,F1 |
| Pressure cast aluminum end plates with ribbed design for rigidity |
| Locked drive end bearing |
| Heavy gauge steel frame |
| 63 power factor |
| Rigid base |
| Continuous duty |
