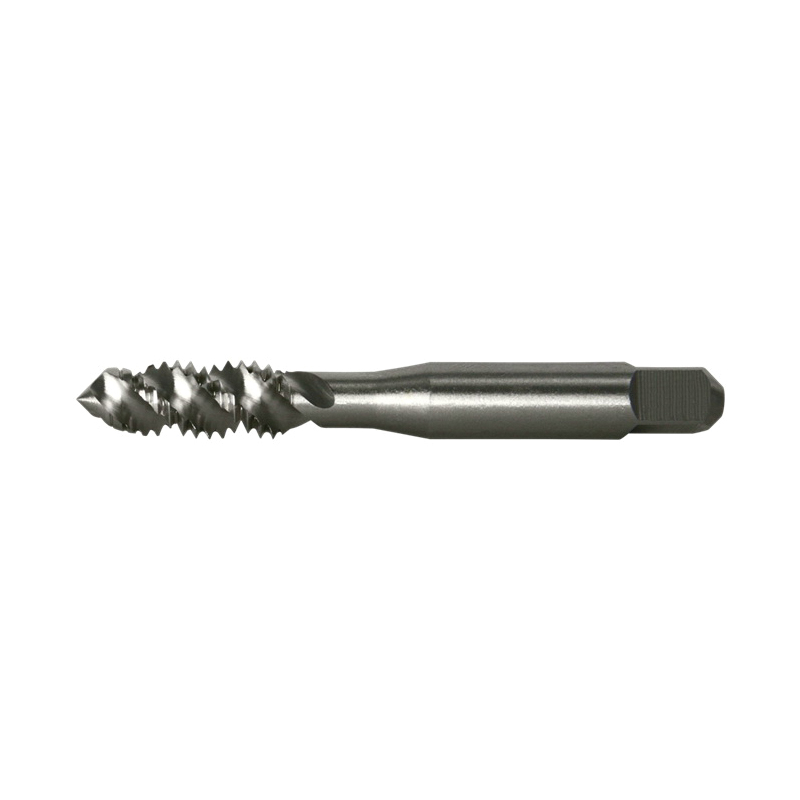

Greenfield Threading™ 367313 Vermont Tap and Die® SFGP General Purpose High Helix Machine Screw Spiral Flute Machine Tap, #10-24
Custom_Product_Images_Illustration
Greenfield Threading™ 367313 Vermont Tap and Die® SFGP General Purpose High Helix Machine Screw Spiral Flute Machine Tap, #10-24
SKU572751
MFGR #16012
Your Cost: $11.54/ea
List: Greenfield Threading Vermont Tap and Die® Spiral Flute Machine Tap, General Purpose High Helix Machine Screw, Series: SFGP, Measurement System: Imperial, #10-24, UNC, Bottoming Chamfer, 3 Flutes, HSS, Bright, Class of Fit: 2B, Right Hand Cutting, 1/2 in Thread Length, 2.38 in Overall Length, 0.19 in Shank Dia, 0.194 in Shank Length
Greenfield Threading Vermont Tap and Die® Spiral Flute Machine Tap, General Purpose High Helix Machine Screw, Series: SFGP, Measurement System: Imperial, #10-24, UNC, Bottoming Chamfer, 3 Flutes, HSS, Bright, Class of Fit: 2B, Right Hand Cutting, 1/2 in Thread Length, 2.38 in Overall Length, 0.19 in Shank Dia, 0.194 in Shank Length
Alternate Catalog Number 16012 Catalog Number 16012 Class of Fit 2B Country of Origin US Finish|Coating Bright Gross Weight Per Pack 1 lb Measurement System Imperial Overall Length 2.38 in Series SFGP Shank Diameter 0.194 in Shank Length 1/4 in Standards USCTI 302A Thread Length 1/2 in Thread Standard Ground/UNC Through Coolant [Yes|No] No Type General Purpose High Helix UPC 11 66235516012 UPC 12 66235516012 Stock Status NONSTOCK Brand Greenfield Threading Manufacturer Greenfield Industries Chamfer Type Bottoming Cutting Direction Right Hand Flute Direction Right Hand Material HSS Material Application Steel and Non-Ferrous Materials Number of Flutes 3 Thread Limit H3 Thread Size #10-24 Ground thread for economical tapping 52 deg helix Straight with square shank configuration Applicable on steel and non-ferrous materials 1/4 in shank square length 2XD tap drill size 0.152 in square size H3 thread limit 1P-2P chamfer H3 thread limit
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Alternate Catalog Number | 16012 |
Catalog Number | 16012 |
Class of Fit | 2B |
Country of Origin | US |
Finish|Coating | Bright |
Gross Weight Per Pack | 1 lb |
Measurement System | Imperial |
Overall Length | 2.38 in |
Series | SFGP |
Shank Diameter | 0.194 in |
Shank Length | 1/4 in |
Standards | USCTI 302A |
Thread Length | 1/2 in |
Thread Standard | Ground/UNC |
Through Coolant [Yes|No] | No |
Type | General Purpose High Helix |
UPC 11 | 66235516012 |
UPC 12 | 66235516012 |
Stock Status | NONSTOCK |
Brand | Greenfield Threading |
Manufacturer | Greenfield Industries |
Chamfer Type | Bottoming |
Cutting Direction | Right Hand |
Flute Direction | Right Hand |
Material | HSS |
Material Application | Steel and Non-Ferrous Materials |
Number of Flutes | 3 |
Thread Limit | H3 |
Thread Size | #10-24 |
Ground thread for economical tapping |
52 deg helix |
Straight with square shank configuration |
Applicable on steel and non-ferrous materials |
1/4 in shank square length |
2XD tap drill size |
0.152 in square size |
H3 thread limit |
1P-2P chamfer |
H3 thread limit |
