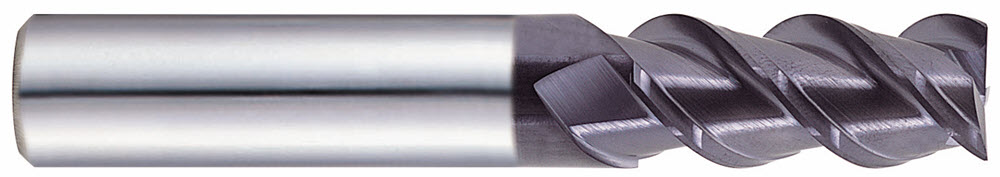

YG-1 EH108, JET-POWER NON-CENTER CUTTING REGULAR LENGTH SQUARE END ROUGHING END MILL, 3/8 IN DIA CUTTER, 3/8 IN SHANK
Square End Mills
920217
MFG #: 95067
YG-1
40.93000
/ ea
- Application: Steel, Stainless Steel
- Catalog Number: 95067
- Country of Origin: KR
- Cut Type: Center
- Cutting Direction: Right Hand
- Gross Weight Per Pack: 0.1300 lb
- Helix Angle: 50 °
- Material: Carbide
- Maximum Depth of Cut: 1 in
- Series: EH108
- Shank Length: 1-1/2 in
- Shank Style: Flat
- Shank Type: Flat
- Type: Carbide, 3 Flute 50° Helix Regular Length
- Stock Status: NORMALLY STOCKED
- Brand: YG-1
- Manufacturer: YG-1 U.S.A.
- Cutter Diameter: 0.375 in
- Finish: TiAlN
- Length of Cut: 1 in
- Number of Flutes: 3
- Overall Length: 2.5 in
- Shank Diameter: 0.375 in
YG-1 Roughing End Mill, Non-Center Cutting Regular Length Square End, Series: EH108, Jet-Power, 3/8 in Cutter Dia, 2-1/2 in Overall Length, 1 in Maximum Depth of Cut, 3 Flutes, 3/8 in Shank Dia, Right Hand Cutting, 50 deg Helix Angle, Flat Shank, 1-1/2 in Shank Length, Solid Micro Grain Carbide, TiAIN Coated
- Applications
- Features
| Steel, Stainless Steel |
| Titanium aluminum nitride (TiAlN) coating lubricates the end mill for high temperature stability and abrasion resistance at high cutting speeds, offering better heat resistance than TiN and TiCN coatings |
| 50 deg helix offers increased cutting action compared to end mills with lower helix angle |
| Number of flutes varies by diameter for optimum feed and cut rate |
| Carbide can run at higher speeds than high speed or cobalt steel, resisting wear and high cutting temperatures |
| Corner protection against chipping |
| For low hardness materials(under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steels, etc |
