YG-1

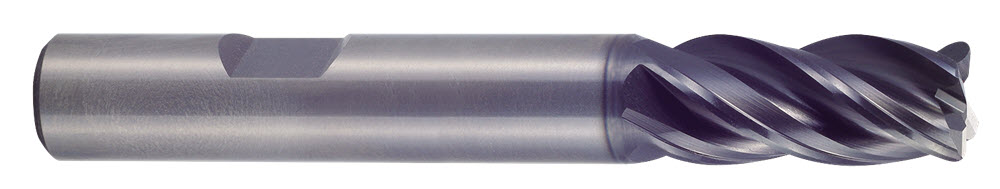

YG-1 GMF55902 4(R.5) x 6 x 8 x 54 V7 PLUS 4 FLUTE MULTIPLE HELIX SHORT CORNER RADIUS FLAT END MILL
YG-1
YG-1 GMF55902 4(R.5) x 6 x 8 x 54 V7 PLUS 4 FLUTE MULTIPLE HELIX SHORT CORNER RADIUS FLAT END MILL
SKUPDW~12660672
MFGR #GMF55902
Your Cost: $56.45/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel, Stainless Steel, Cast Iron, Heat Resistant Alloys/Titanium Catalog Number GMF55902 Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.0500 lb Helix Angle Variable Material Micrograin Carbide Series GMF55 V7 PlusA Shank Type Flat Type Center Cut Metric Standard Length Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 0.5 mm Cutter Diameter 4 in Finish Y-Coating Length of Cut 8 mm Number of Flutes 4 Overall Length 54 mm Shank Diameter 6 mm Steel, Stainless Steel, Cast Iron, Heat Resistant Alloys/Titanium
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel, Stainless Steel, Cast Iron, Heat Resistant Alloys/Titanium |
| Catalog Number | GMF55902 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0500 lb |
| Helix Angle | Variable |
| Material | Micrograin Carbide |
| Series | GMF55 V7 PlusA |
| Shank Type | Flat |
| Type | Center Cut Metric Standard Length |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 0.5 mm |
| Cutter Diameter | 4 in |
| Finish | Y-Coating |
| Length of Cut | 8 mm |
| Number of Flutes | 4 |
| Overall Length | 54 mm |
| Shank Diameter | 6 mm |
| Steel, Stainless Steel, Cast Iron, Heat Resistant Alloys/Titanium |
