YG-1

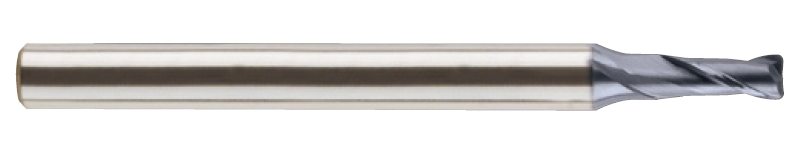

YG-1 GMF18931 1/2 (R.040) x 1/2 x 1-3/16 x 3-1/8 4G MILL 2 FLUTE 30 DEGREE HELIX CORNER RADIUS END MILL
YG-1
YG-1 GMF18931 1/2 (R.040) x 1/2 x 1-3/16 x 3-1/8 4G MILL 2 FLUTE 30 DEGREE HELIX CORNER RADIUS END MILL
SKUPDW~10959346
MFGR #GMF18931
Your Cost: $196.73/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel Catalog Number GMF18931 Country of Origin KR Cut Type Center Cutting Direction Right Hand End Type Corner Radius Gross Weight Per Pack 0.2800 lb Helix Angle 30 ° Material Carbide Series GMF18 Shank Type Plain Type Carbide, 2 Flute Corner Radius Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 0.04 in Cutter Diameter 0.5 in Finish AlCrN Length of Cut 1.1875 in Number of Flutes 2 Overall Length 3.125 in Shank Diameter 0.5 in Steel
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel |
| Catalog Number | GMF18931 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Gross Weight Per Pack | 0.2800 lb |
| Helix Angle | 30 ° |
| Material | Carbide |
| Series | GMF18 |
| Shank Type | Plain |
| Type | Carbide, 2 Flute Corner Radius |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 0.04 in |
| Cutter Diameter | 0.5 in |
| Finish | AlCrN |
| Length of Cut | 1.1875 in |
| Number of Flutes | 2 |
| Overall Length | 3.125 in |
| Shank Diameter | 0.5 in |
| Steel |
