Sandvik Coromant

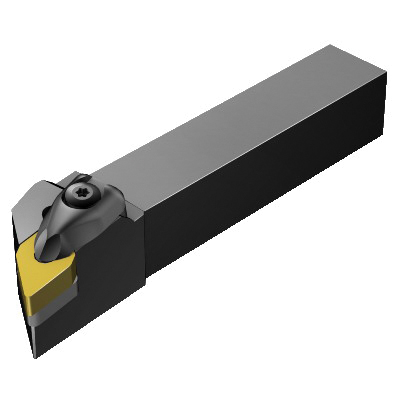

Sandvik Coromant 5731029 T-Max P Turning Shank Tool, DDJNR/L Tool Holder, DNMG 15 04 08 Insert, -3 deg Lead, Rectangle Shank, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5731029 T-Max P Turning Shank Tool, DDJNR/L Tool Holder, DNMG 15 04 08 Insert, -3 deg Lead, Rectangle Shank, Left Hand
SKU80642
MFGR #5731029
Your Cost: $168.41/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DDJNR/L Tool Holder, 4-1/2 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: DNMG 15 04 08, 1/2 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: DDJNL 12 4B, ISO Code: DDJNL 12 4B, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DDJNR/L Tool Holder, 4-1/2 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: DNMG 15 04 08, 1/2 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: DDJNL 12 4B, ISO Code: DDJNL 12 4B, -6 deg Rake, Steel
Alternate Catalog Number DDJNL 12 4B ANSI Code DDJNL 12 4B Back of Bar to Cutting Edge -6 deg Catalog Number 5731029 Country of Origin SE Finish DDJNR/L Gross Weight Per Pack 1.9800 lb Head Length DNMG 15 04 08 Inscribed Circle -3 deg Insert Seat Size 1/2 ISO Code DDJNL 12 4B Item Group 410 Material Steel Series T-Max P Shank Type Rectangle Type 114.3 mm UPC 11 69826218836 UPC 12 69826218836 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility DNMG 15 04 08 Lead Angle -3 deg Overall Length 4-1/2 in Rake -6 deg Shank Size 3/4 in H x 3/4 in W Tool Holder Style DDJNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 93 deg cutting edge -7 deg inclination 36.83 mm maximum overhang 27 deg ramping D insert shape 3.9 Nm torque 19.05 mm H functional 25.4 mm W functional 114.3 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DDJNL 12 4B |
| ANSI Code | DDJNL 12 4B |
| Back of Bar to Cutting Edge | -6 deg |
| Catalog Number | 5731029 |
| Country of Origin | SE |
| Finish | DDJNR/L |
| Gross Weight Per Pack | 1.9800 lb |
| Head Length | DNMG 15 04 08 |
| Inscribed Circle | -3 deg |
| Insert Seat Size | 1/2 |
| ISO Code | DDJNL 12 4B |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | 114.3 mm |
| UPC 11 | 69826218836 |
| UPC 12 | 69826218836 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 15 04 08 |
| Lead Angle | -3 deg |
| Overall Length | 4-1/2 in |
| Rake | -6 deg |
| Shank Size | 3/4 in H x 3/4 in W |
| Tool Holder Style | DDJNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 93 deg cutting edge |
| -7 deg inclination |
| 36.83 mm maximum overhang |
| 27 deg ramping |
| D insert shape |
| 3.9 Nm torque |
| 19.05 mm H functional |
| 25.4 mm W functional |
| 114.3 mm L functional |
