Sandvik Coromant

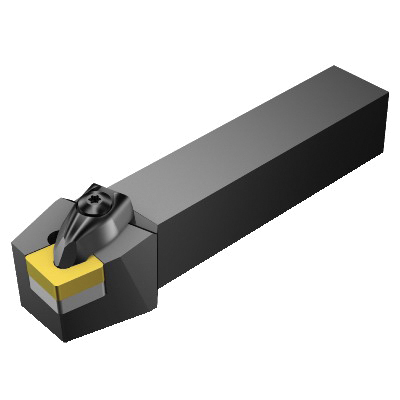

Sandvik Coromant 5730790 T-Max P Turning Shank Tool, DCRNR/L Tool Holder, CNMG 16 06 12 Insert, 15 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5730790 T-Max P Turning Shank Tool, DCRNR/L Tool Holder, CNMG 16 06 12 Insert, 15 deg Lead, Rectangle Shank, Right Hand
SKU417807
MFGR #5730790
Your Cost: $238.10/ea
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCRNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: CNMG 16 06 12, 5/8 Insert Seat, Right Hand Cutting, 15 deg Lead Angle, ANSI Code: DCRNR 20 5D, ISO Code: DCRNR 20 5D, -6 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: T-Max P, DCRNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: CNMG 16 06 12, 5/8 Insert Seat, Right Hand Cutting, 15 deg Lead Angle, ANSI Code: DCRNR 20 5D, ISO Code: DCRNR 20 5D, -6 deg Rake, Steel
Alternate Catalog Number DCRNR 20 5D ANSI Code DCRNR 20 5D Back of Bar to Cutting Edge 1-1/4 in H x 1-1/4 in W Catalog Number 5730790 Country of Origin SE Finish DCRNR/L Gross Weight Per Pack 5.3900 lb Head Length DCRNR 20 5D Inscribed Circle 152.4 mm Insert Seat Size 5/8 ISO Code DCRNR 20 5D Item Group 410 Material Steel Series T-Max P Shank Type Rectangle Type 5/8 in UPC 11 69826218826 UPC 12 69826218826 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility CNMG 16 06 12 Lead Angle 15 deg Overall Length 6 in Rake -6 deg Shank Size 1-1/4 in H x 1-1/4 in W Tool Holder Style DCRNR/L 0 deg body machine side 20 life cycle state 0 deg body workpiece side Without coolant entry Floating wedge, RC hole No coolant exit 75 deg cutting edge -6 deg inclination 41.656 mm maximum overhang 0 deg ramping C insert shape 6.4 Nm torque 31.75 mm H functional 32.7914 mm W functional 152.4 mm L functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DCRNR 20 5D |
| ANSI Code | DCRNR 20 5D |
| Back of Bar to Cutting Edge | 1-1/4 in H x 1-1/4 in W |
| Catalog Number | 5730790 |
| Country of Origin | SE |
| Finish | DCRNR/L |
| Gross Weight Per Pack | 5.3900 lb |
| Head Length | DCRNR 20 5D |
| Inscribed Circle | 152.4 mm |
| Insert Seat Size | 5/8 |
| ISO Code | DCRNR 20 5D |
| Item Group | 410 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| Type | 5/8 in |
| UPC 11 | 69826218826 |
| UPC 12 | 69826218826 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 16 06 12 |
| Lead Angle | 15 deg |
| Overall Length | 6 in |
| Rake | -6 deg |
| Shank Size | 1-1/4 in H x 1-1/4 in W |
| Tool Holder Style | DCRNR/L |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 75 deg cutting edge |
| -6 deg inclination |
| 41.656 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 6.4 Nm torque |
| 31.75 mm H functional |
| 32.7914 mm W functional |
| 152.4 mm L functional |
