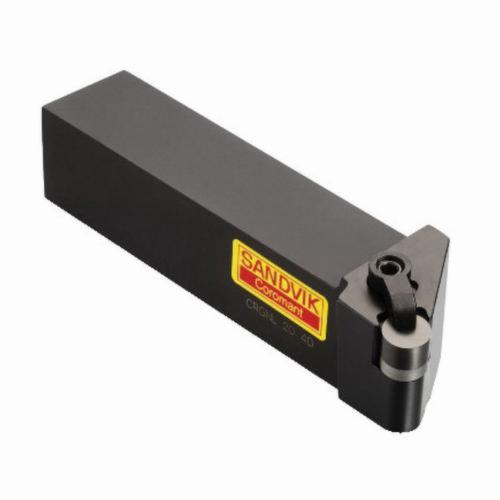

Sandvik Coromant 5726154 T-Max Shank Tool, CRGNR/L Tool Holder, RNGN 120700 (MIIDM) and RNG 45 (MIIDN) Insert, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
794311
MFG #: 5726154
Sandvik Coromant
332.18000
/ ea
- Alternate Catalog Number: CRGNL 20 4D
- ANSI Code: CRGNL 20 4D
- Catalog Number: 5726154
- Country of Origin: IN
- Gross Weight Per Pack: 2.6000 lb
- Insert Seat Size: 1/2
- ISO Code: CRGNL 20 4D
- Item Group: 210
- Material: Steel
- Series: T-Max
- Shank Type: Rectangle
- UPC 11: 69826236314
- UPC 12: 69826236314
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Left Hand
- Insert Compatibility: RNGN 120700 (MIIDM) and RNG 45 (MIIDN)
- Overall Length: 6 in
- Rake: -6 deg
- Shank Size: 1-1/4 in H x 1-1/4 in W
- Tool Holder Style: CRGNR/L
Sandvik Coromant Shank Tool, Series: T-Max, CRGNR/L Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1-1/4 in W Shank, Insert Compatibility: RNGN 120700 (MIIDM) and RNG 45 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, ANSI Code: CRGNL 20 4D, ISO Code: CRGNL 20 4D, -6 deg Rake, Steel
- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| -6 deg inclination |
| 27 deg maximum ramping |
| 20 life cycle state |
| 31.75 mm maximum overhang |
| 5 Nm torque |
| 38.1 mm W functional |
| Cantilever top clamping for flat surface no hole |
| R - Round insert |
| ANSI Code: CRGNL 20 4D |
| ISO Code: CRGNL 20 4D |
