Sandvik Coromant

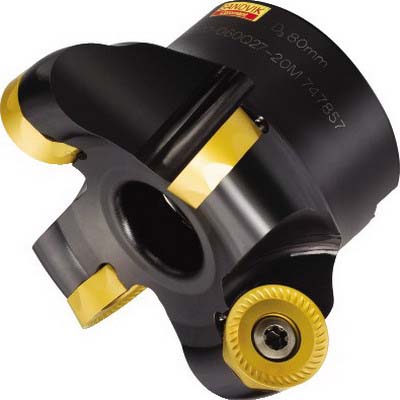

Sandvik Coromant 5739043 CoroMill® 200 Face Milling Cutter, 2-1/2 in Cutting, 1 in Shank, 1.9685 in OAL, RA200..Rxx Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5739043 CoroMill® 200 Face Milling Cutter, 2-1/2 in Cutting, 1 in Shank, 1.9685 in OAL, RA200..Rxx Insert
SKU304178
MFGR #5739043
Your Cost: $1,119.53/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 200, 2-1/2 in Cutting Dia, 1.9685 in Overall Length, 1/4 in Maximum Depth of Cut, RA200..Rxx Insert, 5 Inserts, Insert Compatibility: RCKT 130400, 1 in Shank Dia, Right Hand Cutting, ANSI Code: RA200-063R25-13M, ISO Code: RA200-063R25-13M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 200, 2-1/2 in Cutting Dia, 1.9685 in Overall Length, 1/4 in Maximum Depth of Cut, RA200..Rxx Insert, 5 Inserts, Insert Compatibility: RCKT 130400, 1 in Shank Dia, Right Hand Cutting, ANSI Code: RA200-063R25-13M, ISO Code: RA200-063R25-13M, Steel
Alternate Catalog Number RA200-063R25-13M ANSI Code RA200-063R25-13M Catalog Number 5739043 Country of Origin US Gross Weight Per Pack 2.2200 lb ISO Code RA200-063R25-13M Item Group 450 Material Steel Series CoroMill® 200 Standards ISO 6462:2011 UPC 11 69826276898 UPC 12 69826276898 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1 in Cutting Diameter 2-1/2 in Cutting Direction Right Hand Insert Compatibility RCKT 130400 Insert Style RA200..Rxx Maximum Depth of Cut 1/4 in Number of Inserts 5 Overall Length 1.9685 in Shank Diameter 1 in Shank Type Arbor Through Coolant No 76.2 mm Dia x 50 mm L body 3.5 mm D plunge Without coolant entry Differential cutting pitch 40 - 60 deg insert screw clamping interface 76.2 mm Dia maximum cutting 9.75 mm W keyway 50 mm overhang 3 deg maximum ramping 18000 r/min 3 Nm torque 20 life cycle state Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RA200-063R25-13M |
| ANSI Code | RA200-063R25-13M |
| Catalog Number | 5739043 |
| Country of Origin | US |
| Gross Weight Per Pack | 2.2200 lb |
| ISO Code | RA200-063R25-13M |
| Item Group | 450 |
| Material | Steel |
| Series | CoroMill® 200 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826276898 |
| UPC 12 | 69826276898 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1 in |
| Cutting Diameter | 2-1/2 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | RCKT 130400 |
| Insert Style | RA200..Rxx |
| Maximum Depth of Cut | 1/4 in |
| Number of Inserts | 5 |
| Overall Length | 1.9685 in |
| Shank Diameter | 1 in |
| Shank Type | Arbor |
| Through Coolant | No |
| 76.2 mm Dia x 50 mm L body |
| 3.5 mm D plunge |
| Without coolant entry |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 76.2 mm Dia maximum cutting |
| 9.75 mm W keyway |
| 50 mm overhang |
| 3 deg maximum ramping |
| 18000 r/min |
| 3 Nm torque |
| 20 life cycle state |
| Hexagon socket head cap screw adaptive interface |
