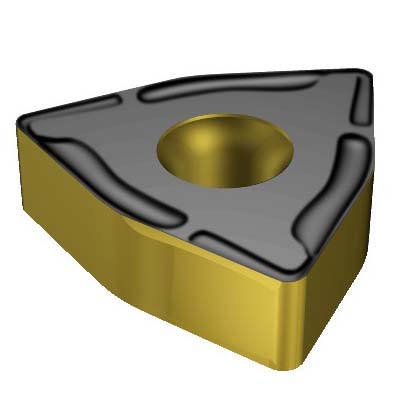

Sandvik Coromant 6533042 Bar Peeling Insert, WNMX 21 12 51-MM 4325, W-Trigon, WNMX21-MM Insert, 4325, Carbide
WNMX Turning Inserts
845713
MFG #: 6533042
Sandvik Coromant
151.35000
/ ea
- Alternate Catalog Number: WNMX 21 12 51-MM 4325
- ANSI Code: WNMX 21 12 51-MM 4325
- Catalog Number: 6533042
- Corner Radius: 0.6299 in
- Country of Origin: SE
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.3500 lb
- Hand of Insert: Left
- Hole Diameter: 0.359 in
- Included Angle: 80 deg
- ISO Code: WNMX 21 12 51-MM 4325
- Item Group: 340
- Length: 0.8173 in
- Relief Angle: 0
- Series: WNMX21-MM
- Thickness: 1/2 in
- Type: Carbide
- Width: 80 deg
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: MM
- Cutting Direction: Left Hand
- For Use On: Steel
- Inscribed Circle: 1-1/4 in
- Insert Size: WNMX 21 12 51-MM 4325
- Insert Style: WNMX21-MM
- Manufacturer's Grade: 4325
- Material: Carbide
- Material Grade: P
- Maximum Depth of Cut: 5 mm
- Rake: Neutral
- Seat Size: 21
- Shape: W-Trigon
Sandvik Coromant Bar Peeling Insert, WNMX21-MM Insert, W-Trigon, 5 mm Maximum Depth of Cut, 1-1/4 in Inscribed Circle, 1/2 in Thickness, 0.8173 in Length, MM Chipbreaker, 0.6299 in Corner Radius, 0.359 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: WNMX 21 12 51-MM 4325, ISO Code: WNMX 21 12 51-MM 4325, 80 deg Included Angle, Left Hand, Carbide, MTCVD Coated, Material Grade: P
- Features
| 0 deg major clearance |
| 21 mm L x 18 mm W corner chamfer |
| 7.5 mm L wiper edge |
| E cutting edge condition |
| 6 cutting edge |
| 3 corner |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 100 deg corner chamfer |
| 120 deg major cutting edge |
| 15 mm L effective cutting edge |
| 2-side cutting |
| M insert tolerance class |
| Wiper edge technology |
| 20 life cycle state |
