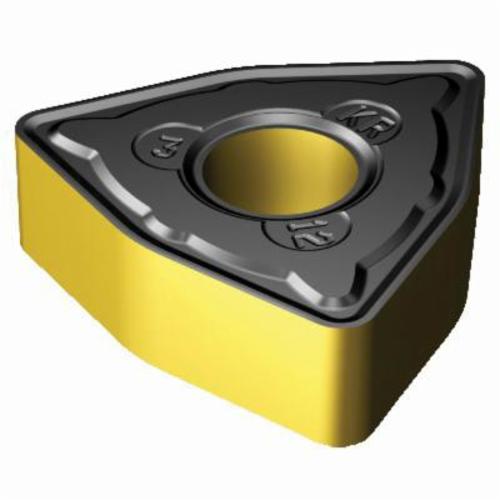

Sandvik Coromant 5756599 T-Max® P Negative Basic Shape Turning Insert, WNMG 333-KR 3210, W-Trigon, WNMG Insert, 3210, Carbide
WNMG Turning Inserts
963487
MFG #: 5756599
Sandvik Coromant
13.27000
/ ea
- Alternate Catalog Number: WNMG 333-KR 3210
- ANSI Code: WNMG 333-KR 3210
- Catalog Number: 5756599
- Corner Radius: 0.0468 in
- Country of Origin: SE
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.15 in
- Included Angle: 80 deg
- ISO Code: WNMG 06 04 12-KR 3210
- Item Group: 110
- Length: 0.2565 in
- Relief Angle: 0 deg
- Series: T-Max® P
- Thickness: 0.1874 in
- Type: Negative Basic Shape
- Width: KR
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: KR
- Inscribed Circle: 3/8 in
- Insert Size: WNMG
- Insert Style: WNMG
- Manufacturer's Grade: 3210
- Material: Carbide
- Material Grade: K
- Maximum Depth of Cut: 4.5 mm
- Shape: W-Trigon
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, WNMG Insert, W-Trigon, 4.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.2565 in Length, KR Chipbreaker, 0.0468 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: WNMG 333-KR 3210, ISO Code: WNMG 06 04 12-KR 3210, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
- Features
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.56 mm/r cutting feed |
| 20 life cycle state |
