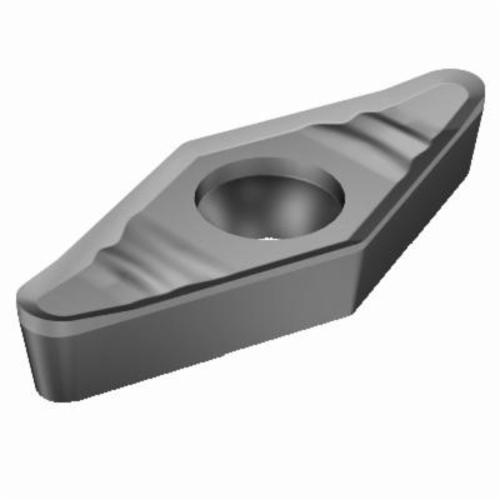

Sandvik Coromant 5755911 CoroTurn® 107 Basic Shape Positive Turning Insert, VCGX 221-AL H10, V-35 deg Diamond, VCGX Insert, H10
Custom_Product_Images_Illustration
Sandvik Coromant 5755911 CoroTurn® 107 Basic Shape Positive Turning Insert, VCGX 221-AL H10, V-35 deg Diamond, VCGX Insert, H10
SKU303493
MFGR #5755911
Your Cost: $22.54/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, VCGX Insert, V-35 deg Diamond, 3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, AL Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: H10, ANSI Code: VCGX 221-AL H10, ISO Code: VCGX 11 03 04-AL H10, 35 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: N
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, VCGX Insert, V-35 deg Diamond, 3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, AL Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: H10, ANSI Code: VCGX 221-AL H10, ISO Code: VCGX 11 03 04-AL H10, 35 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: N
Alternate Catalog Number VCGX 221-AL H10 ANSI Code VCGX 221-AL H10 Catalog Number 5755911 Corner Radius 0.0156 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.1102 in Included Angle 35 deg ISO Code VCGX 11 03 04-AL H10 Item Group 130 Length 0.4358 in Relief Angle 7 deg Series CoroTurn® 107 Thickness 1/8 in Type Basic Shape Positive UPC 11 69826227892 UPC 12 69826227892 Width AL Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker AL Cutting Direction Neutral For Use On Heat Resistant Super Alloys and Non-Ferrous Metals Inscribed Circle 1/4 in Insert Size V - 35 deg Diamond Insert Style VCGX Manufacturer's Grade H10 Material Carbide Material Grade N Maximum Depth of Cut 3 mm Rake Positive Seat Size 11 Shape V-35 deg Diamond 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.13 mm THK and +/-0.025 mm inscribed circle tolerance Sharp cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.1 - 0.3 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | VCGX 221-AL H10 |
| ANSI Code | VCGX 221-AL H10 |
| Catalog Number | 5755911 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1102 in |
| Included Angle | 35 deg |
| ISO Code | VCGX 11 03 04-AL H10 |
| Item Group | 130 |
| Length | 0.4358 in |
| Relief Angle | 7 deg |
| Series | CoroTurn® 107 |
| Thickness | 1/8 in |
| Type | Basic Shape Positive |
| UPC 11 | 69826227892 |
| UPC 12 | 69826227892 |
| Width | AL |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | AL |
| Cutting Direction | Neutral |
| For Use On | Heat Resistant Super Alloys and Non-Ferrous Metals |
| Inscribed Circle | 1/4 in |
| Insert Size | V - 35 deg Diamond |
| Insert Style | VCGX |
| Manufacturer's Grade | H10 |
| Material | Carbide |
| Material Grade | N |
| Maximum Depth of Cut | 3 mm |
| Rake | Positive |
| Seat Size | 11 |
| Shape | V-35 deg Diamond |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.025 mm inscribed circle tolerance |
| Sharp cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.1 - 0.3 mm/r cutting feed |
| 20 life cycle state |
