Sandvik Coromant

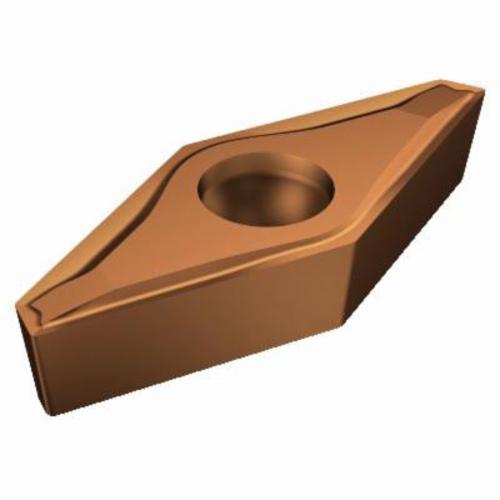

Sandvik Coromant 5755916 CoroTurn® 107 Basic Shape Positive Turning Insert, VCEX 22(00)L-F 1125, V-35 deg Diamond, 1125
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5755916 CoroTurn® 107 Basic Shape Positive Turning Insert, VCEX 22(00)L-F 1125, V-35 deg Diamond, 1125
SKU487210
MFGR #5755916
Your Cost: $43.10/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, VCEX Insert, V-35 deg Diamond, 4 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, F Chipbreaker, 0.0007 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: VCEX 22(00)L-F 1125, ISO Code: VCEX 11 03 00L-F 1125, 35 deg Included Angle, 7 deg Relief Angle, Left Hand, Carbide, PVD Coated, Material Grade: M/N/S
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, VCEX Insert, V-35 deg Diamond, 4 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, F Chipbreaker, 0.0007 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: VCEX 22(00)L-F 1125, ISO Code: VCEX 11 03 00L-F 1125, 35 deg Included Angle, 7 deg Relief Angle, Left Hand, Carbide, PVD Coated, Material Grade: M/N/S
Alternate Catalog Number VCEX 22(00)L-F 1125 ANSI Code VCEX 22(00)L-F 1125 Catalog Number 5755916 Corner Radius 0.0007 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Left Hole Diameter 0.1102 in Included Angle 35 deg ISO Code VCEX 11 03 00L-F 1125 Item Group 120 Length 0.4358 in Relief Angle 7 deg Series CoroTurn® 107 Thickness 1/8 in Type Basic Shape Positive UPC 11 69826244681 UPC 12 69826244681 Width 0.02 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker F Cutting Direction Left Hand For Use On Heat Resistant Super Alloys, Non-Ferrous Metals, Stainless Steel and Steel Inscribed Circle 1/4 in Insert Size V - 35 deg Diamond Insert Style VCEX Manufacturer's Grade 1125 Material Carbide Material Grade M/N/S Maximum Depth of Cut 4 mm Rake Positive Seat Size 11 Shape V-35 deg Diamond 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.025 mm THK and inscribed circle tolerance Sharp cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow Wiper technology for high feed machining Improved machining economy Excellent surface finish Eliminate expensive grinding operations Undisturbed production Less need for supervision 0.01 - 0.2 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | VCEX 22(00)L-F 1125 |
| ANSI Code | VCEX 22(00)L-F 1125 |
| Catalog Number | 5755916 |
| Corner Radius | 0.0007 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Left |
| Hole Diameter | 0.1102 in |
| Included Angle | 35 deg |
| ISO Code | VCEX 11 03 00L-F 1125 |
| Item Group | 120 |
| Length | 0.4358 in |
| Relief Angle | 7 deg |
| Series | CoroTurn® 107 |
| Thickness | 1/8 in |
| Type | Basic Shape Positive |
| UPC 11 | 69826244681 |
| UPC 12 | 69826244681 |
| Width | 0.02 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | F |
| Cutting Direction | Left Hand |
| For Use On | Heat Resistant Super Alloys, Non-Ferrous Metals, Stainless Steel and Steel |
| Inscribed Circle | 1/4 in |
| Insert Size | V - 35 deg Diamond |
| Insert Style | VCEX |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | M/N/S |
| Maximum Depth of Cut | 4 mm |
| Rake | Positive |
| Seat Size | 11 |
| Shape | V-35 deg Diamond |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.025 mm THK and inscribed circle tolerance |
| Sharp cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.01 - 0.2 mm/r cutting feed |
| 20 life cycle state |
