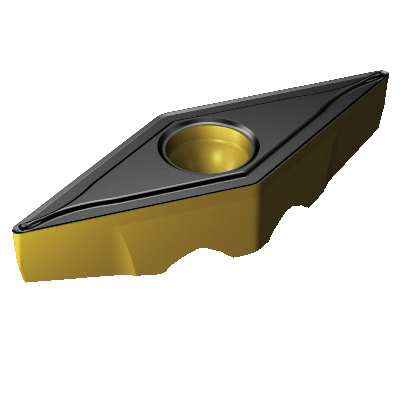

Sandvik Coromant 6612606 CoroTurn® TR Turning Insert, TR-VB1308-F 4315, V-35 deg Diamond, TR-VB..-F Insert, 4315
TR Turning Inserts
957701
MFG #: 6612606
Sandvik Coromant
25.14000
/ ea
- Alternate Catalog Number: TR-VB1308-F 4315
- ANSI Code: TR-VB1308-F 4315
- Catalog Number: 6612606
- Corner Radius: 0.0312 in
- Country of Origin: SE
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.1338 in
- Included Angle: 35 deg
- ISO Code: TR-VB1308-F 4315
- Item Group: 310
- Length: 0.5118 in
- Relief Angle: V - 35 deg Diamond
- Series: CoroTurn® TR
- Thickness: 0.1781 in
- Type: 2 mm
- Width: CoroTurn® TR
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: F
- Inscribed Circle: 0.3149 in
- Insert Size: F
- Insert Style: TR-VB..-F
- Manufacturer's Grade: 4315
- Material: Carbide
- Material Grade: P
- Maximum Depth of Cut: 2 mm
- Shape: V-35 deg Diamond
Sandvik Coromant Turning Insert, Series: CoroTurn® TR, TR-VB..-F Insert, V-35 deg Diamond, 2 mm Maximum Depth of Cut, 0.3149 in Inscribed Circle, 0.1781 in Thickness, 0.5118 in Length, F Chipbreaker, 0.0312 in Corner Radius, 0.1338 in Hole Dia, Manufacturer's Grade: 4315, ANSI Code: TR-VB1308-F 4315, ISO Code: TR-VB1308-F 4315, 35 deg Included Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
- Features
| 40 - 60 deg countersunk hole, rail bottom and non-flat surface clamping interface |
| 5 deg major clearance |
| ER treated cutting edge |
| 12.2 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 cutting edge |
| 0.09-0.4 mm/r cutting feed |
