Sandvik Coromant

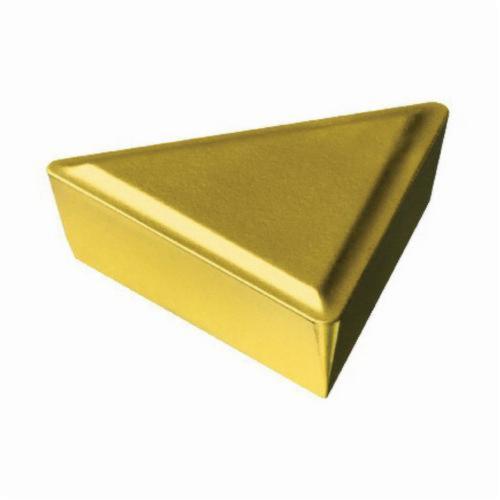

Sandvik Coromant 5754908 T-Max® S Turning Insert, TPMR 322 235, T-Triangle, TPMR Insert, 235, Carbide, TPMR 16 03 08 235
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5754908 T-Max® S Turning Insert, TPMR 322 235, T-Triangle, TPMR Insert, 235, Carbide, TPMR 16 03 08 235
SKU1248562
MFGR #5754908
Your Cost: $15.60/ea
List: Sandvik Coromant Turning Insert, Series: T-Max® S, TPMR Insert, T-Triangle, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.6495 in Length, 53 Chipbreaker, 0.0312 in Corner Radius, Manufacturer's Grade: 235, ANSI Code: TPMR 322 235, ISO Code: TPMR 16 03 08 235, 60 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Series: T-Max® S, TPMR Insert, T-Triangle, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.6495 in Length, 53 Chipbreaker, 0.0312 in Corner Radius, Manufacturer's Grade: 235, ANSI Code: TPMR 322 235, ISO Code: TPMR 16 03 08 235, 60 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number TPMR 322 235 ANSI Code TPMR 322 235 Catalog Number 5754908 Corner Radius 0.0312 in Country of Origin IN Finish CVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 11 deg Included Angle 60 deg ISO Code TPMR 16 03 08 235 Item Group 130 Length 0.6495 in Relief Angle 11 deg Series T-Max® S Thickness 1/8 in Type T-Max® S UPC 11 69826241462 Width 235 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker 53 Cutting Direction Neutral For Use On Stainless Steel and Steel Inscribed Circle 3/8 in Insert Size 9.52 mm Insert Style TPMR Manufacturer's Grade 235 Material Carbide Material Grade M Maximum Depth of Cut 16.49 mm Rake Positive Seat Size 16 Shape T-Triangle Flat surface clamping interface 1-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | TPMR 322 235 |
| ANSI Code | TPMR 322 235 |
| Catalog Number | 5754908 |
| Corner Radius | 0.0312 in |
| Country of Origin | IN |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 11 deg |
| Included Angle | 60 deg |
| ISO Code | TPMR 16 03 08 235 |
| Item Group | 130 |
| Length | 0.6495 in |
| Relief Angle | 11 deg |
| Series | T-Max® S |
| Thickness | 1/8 in |
| Type | T-Max® S |
| UPC 11 | 69826241462 |
| Width | 235 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | 53 |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 9.52 mm |
| Insert Style | TPMR |
| Manufacturer's Grade | 235 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 16.49 mm |
| Rake | Positive |
| Seat Size | 16 |
| Shape | T-Triangle |
| Flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| 20 life cycle state |
