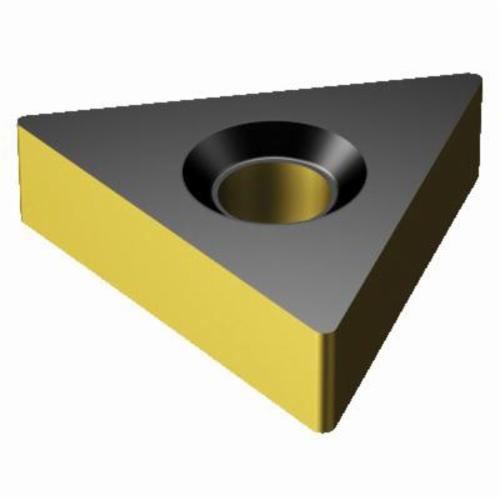

Sandvik Coromant 5753488 T-Max® P Negative Basic Shape Turning Insert, TNMA 438-KR 3215, T-Triangle, TNMA Insert, 3215
Custom_Product_Images_Illustration
Sandvik Coromant 5753488 T-Max® P Negative Basic Shape Turning Insert, TNMA 438-KR 3215, T-Triangle, TNMA Insert, 3215
SKU1245456
MFGR #5753488
Your Cost: $18.71/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, TNMA Insert, T-Triangle, 10 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.866 in Length, KR Chipbreaker, 1/8 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3215, ANSI Code: TNMA 438-KR 3215, ISO Code: TNMA 22 04 32-KR 3215, 60 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, TNMA Insert, T-Triangle, 10 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.866 in Length, KR Chipbreaker, 1/8 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3215, ANSI Code: TNMA 438-KR 3215, ISO Code: TNMA 22 04 32-KR 3215, 60 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
ANSI Code TNMA 438-KR 3215 Catalog Number 5753488 Corner Radius 1/8 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.3400 lb Hole Diameter 0.2029 in Included Angle 60 ° ISO Code TNMA 22 04 32-KR 3215 Length 0.866 in Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Type Basic Shape UPC 11 69826232989 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KR Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 1/2 in Insert Size 438 Insert Style TNMA Manufacturer's Grade 3215 Material Carbide Material Grade K Maximum Depth of Cut 0.394 in Rake Negative Seat Size 22 Shape Triangle Straight hole and flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.5 - 1.19 mm/r cutting feed 30 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | TNMA 438-KR 3215 |
| Catalog Number | 5753488 |
| Corner Radius | 1/8 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.3400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 60 ° |
| ISO Code | TNMA 22 04 32-KR 3215 |
| Length | 0.866 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Type | Basic Shape |
| UPC 11 | 69826232989 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 1/2 in |
| Insert Size | 438 |
| Insert Style | TNMA |
| Manufacturer's Grade | 3215 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 0.394 in |
| Rake | Negative |
| Seat Size | 22 |
| Shape | Triangle |
| Straight hole and flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.5 - 1.19 mm/r cutting feed |
| 30 life cycle state |
