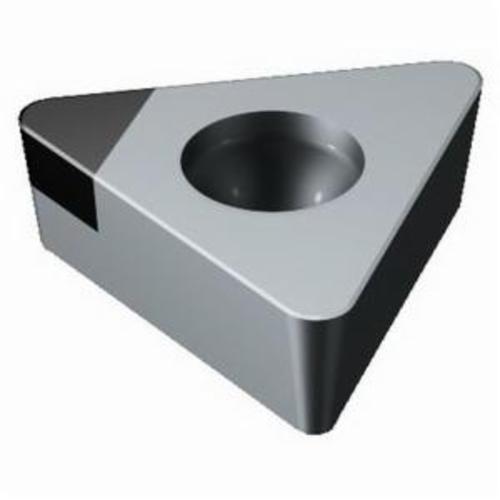

Sandvik Coromant 5752851 CoroTurn® 107 1-Sided Turning Insert, TCMW3(2.5)2FP CD10, T-Triangle, TCMW..FP Insert, CD10, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 5752851 CoroTurn® 107 1-Sided Turning Insert, TCMW3(2.5)2FP CD10, T-Triangle, TCMW..FP Insert, CD10, Carbide
SKU1245269
MFGR #5752851
Your Cost: $209.07/ea
Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn® 107, TCMW..FP Insert, T-Triangle, 1 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.6495 in Length, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: CD10, ANSI Code: TCMW3(2.5)2FP CD10, ISO Code: TCMW16T308FP CD10, 60 deg Included Angle, Neutral Hand, Carbide, Uncoated, Material Grade: N
Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn® 107, TCMW..FP Insert, T-Triangle, 1 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.6495 in Length, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: CD10, ANSI Code: TCMW3(2.5)2FP CD10, ISO Code: TCMW16T308FP CD10, 60 deg Included Angle, Neutral Hand, Carbide, Uncoated, Material Grade: N
Alternate Catalog Number TCMW3(2.5)2FP CD10 ANSI Code TCMW3(2.5)2FP CD10 Catalog Number 5752851 Corner Radius 0.0312 in Country of Origin PL Finish Uncoated Gross Weight Per Pack 9.3300 lb Hole Diameter 0.1732 in Included Angle 60 ° ISO Code TCMW16T308FP CD10 Item Group 630 Length 0.649 in Relief Angle 7 ° Series CoroTurn® 107 Thickness 0.156 in Type Basic Shape UPC 11 69826286640 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker FP Cutting Direction Neutral For Use On Non-Ferrous Metals Inscribed Circle 3/8 in Insert Size 3(2.5)2 Insert Style TCMW Manufacturer's Grade CD10 Material Carbide Material Grade N Maximum Depth of Cut 0.122 in Rake Positive Seat Size 16 Shape Triangle Ideal for long overhangs For unstable or thin-walled components Low cutting pressures Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance Screw clamping ensures stability and unobstructed chip flow Holders and insert geometries with conventional and CoroTurn HP design For longitudinal turning and profiling Positive rake Screw clamp mount
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | TCMW3(2.5)2FP CD10 |
| ANSI Code | TCMW3(2.5)2FP CD10 |
| Catalog Number | 5752851 |
| Corner Radius | 0.0312 in |
| Country of Origin | PL |
| Finish | Uncoated |
| Gross Weight Per Pack | 9.3300 lb |
| Hole Diameter | 0.1732 in |
| Included Angle | 60 ° |
| ISO Code | TCMW16T308FP CD10 |
| Item Group | 630 |
| Length | 0.649 in |
| Relief Angle | 7 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.156 in |
| Type | Basic Shape |
| UPC 11 | 69826286640 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | FP |
| Cutting Direction | Neutral |
| For Use On | Non-Ferrous Metals |
| Inscribed Circle | 3/8 in |
| Insert Size | 3(2.5)2 |
| Insert Style | TCMW |
| Manufacturer's Grade | CD10 |
| Material | Carbide |
| Material Grade | N |
| Maximum Depth of Cut | 0.122 in |
| Rake | Positive |
| Seat Size | 16 |
| Shape | Triangle |
| Ideal for long overhangs |
| For unstable or thin-walled components |
| Low cutting pressures |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
| Screw clamping ensures stability and unobstructed chip flow |
| Holders and insert geometries with conventional and CoroTurn HP design |
| For longitudinal turning and profiling |
| Positive rake |
| Screw clamp mount |
