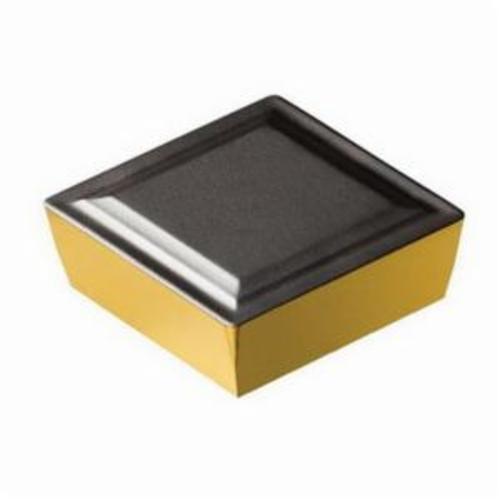

Sandvik Coromant 5852840 T-Max® S 1-Sided Turning Insert, SPMR 423 4225, S-Square, SPMR Insert, 4225, Carbide
SPMR Turning Inserts
1238712
MFG #: 5852840
Sandvik Coromant
15.65000
/ ea
- ANSI Code: SPMR 423 4225
- Catalog Number: 5852840
- Corner Radius: 0.047 in
- Country of Origin: SE
- Finish: CVD-TiCN+Al2O3+TiN Coated
- Gross Weight Per Pack: 0.1900 lb
- Included Angle: 90 °
- ISO Code: SPMR 12 03 12 4225
- Length: 1/2 in
- Relief Angle: 11 °
- Series: T-Max® S
- Thickness: 1/8 in
- UPC 11: 69826252159
- Width: 1/2 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: 53
- Cutting Direction: Neutral
- For Use On: Cast Iron and Steel
- Inscribed Circle: 1/2 in
- Insert Size: 423
- Insert Style: SPMR
- Manufacturer's Grade: 4225
- Material: Carbide
- Material Grade: K, P
- Rake: Positive
- Seat Size: 12
- Shape: Square
Sandvik Coromant Turning Insert, 1-Sided, Series: T-Max® S, SPMR Insert, S-Square, 1/2 in Inscribed Circle, 1/8 in Thickness, 1/2 in Length, 53 Chipbreaker, 0.0468 in Corner Radius, Manufacturer's Grade: 4225, ANSI Code: SPMR 423 4225, ISO Code: SPMR 12 03 12 4225, 90 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated
- Features
| 11 deg major clearance |
| E cutting edge condition |
| 4 cutting edges |
| Flat surface clamping interface |
| 11.5 mm L effective cutting edge |
| M tolerance class |
| 40 life cycle state |
| Positive rake |
| Without fixing hole mount |
