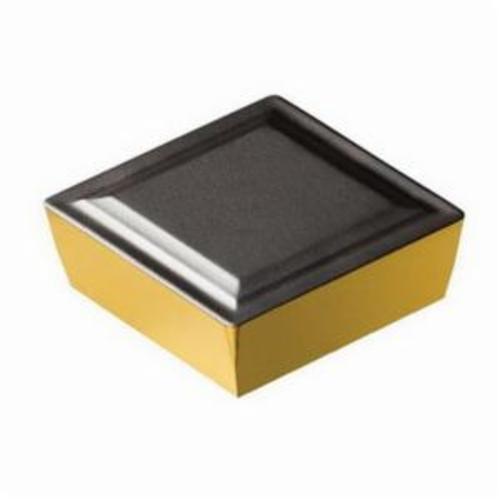

Sandvik Coromant 5852816 T-Max® S 1-Sided Turning Insert, SPMR 321 4225, S-Square, SPMR Insert, 4225, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 5852816 T-Max® S 1-Sided Turning Insert, SPMR 321 4225, S-Square, SPMR Insert, 4225, Carbide
SKU1238686
MFGR #5852816
Your Cost: $12.31/ea
List: Sandvik Coromant Turning Insert, 1-Sided, Series: T-Max® S, SPMR Insert, S-Square, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Length, 53 Chipbreaker, 0.0156 in Corner Radius, Manufacturer's Grade: 4225, ANSI Code: SPMR 321 4225, ISO Code: SPMR 09 03 04 4225, 90 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated
Sandvik Coromant Turning Insert, 1-Sided, Series: T-Max® S, SPMR Insert, S-Square, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Length, 53 Chipbreaker, 0.0156 in Corner Radius, Manufacturer's Grade: 4225, ANSI Code: SPMR 321 4225, ISO Code: SPMR 09 03 04 4225, 90 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated
ANSI Code SPMR 321 4225 Catalog Number 5852816 Corner Radius 0.016 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1100 lb Included Angle 90 ° ISO Code SPMR 09 03 04 4225 Length 3/8 in Relief Angle 11 ° Series T-Max® S Thickness 1/8 in UPC 11 69826252146 Width 3/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker 53 Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/8 in Insert Size 321 Insert Style SPMR Manufacturer's Grade 4225 Material Carbide Material Grade K, P Rake Positive Seat Size 09 Shape Square 11 deg major clearance E cutting edge condition 4 cutting edges Flat surface clamping interface 9.125 mm L effective cutting edge M tolerance class 40 life cycle state Positive rake Without fixing hole mount
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | SPMR 321 4225 |
| Catalog Number | 5852816 |
| Corner Radius | 0.016 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1100 lb |
| Included Angle | 90 ° |
| ISO Code | SPMR 09 03 04 4225 |
| Length | 3/8 in |
| Relief Angle | 11 ° |
| Series | T-Max® S |
| Thickness | 1/8 in |
| UPC 11 | 69826252146 |
| Width | 3/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | 53 |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 321 |
| Insert Style | SPMR |
| Manufacturer's Grade | 4225 |
| Material | Carbide |
| Material Grade | K, P |
| Rake | Positive |
| Seat Size | 09 |
| Shape | Square |
| 11 deg major clearance |
| E cutting edge condition |
| 4 cutting edges |
| Flat surface clamping interface |
| 9.125 mm L effective cutting edge |
| M tolerance class |
| 40 life cycle state |
| Positive rake |
| Without fixing hole mount |
