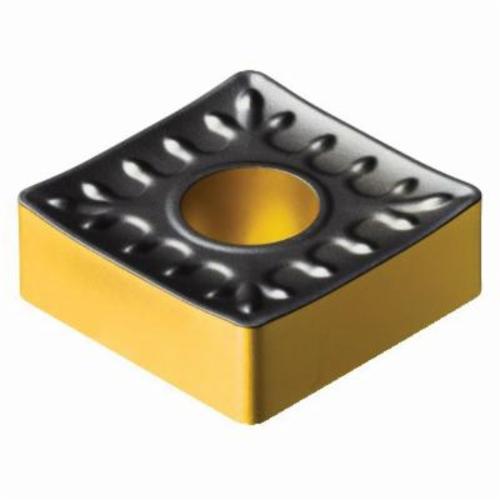

Sandvik Coromant 5750669 T-Max® P Negative Basic Shape Turning Insert, SNMM 542-QR 4235, S-Square, SNMM Insert, 4235, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 5750669 T-Max® P Negative Basic Shape Turning Insert, SNMM 542-QR 4235, S-Square, SNMM Insert, 4235, Carbide
SKU1238652
MFGR #5750669
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMM Insert, S-Square, 10 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, QR Chipbreaker, 0.0312 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: SNMM 542-QR 4235, ISO Code: SNMM 15 06 08-QR 4235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMM Insert, S-Square, 10 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, QR Chipbreaker, 0.0312 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: SNMM 542-QR 4235, ISO Code: SNMM 15 06 08-QR 4235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
ANSI Code SNMM 542-QR 4235 Catalog Number 5750669 Corner Radius 0.031 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.4300 lb Hole Diameter 1/4 in Included Angle 90 ° ISO Code SNMM 15 06 08-QR 4235 Length 5/8 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826238030 Width 5/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker QR Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 5/8 in Insert Size 542 Insert Style SNMM Manufacturer's Grade 4235 Material CARBIDE Material Grade K, M, P Maximum Depth of Cut 0.394 in Rake Negative Seat Size 15 Shape Square Universal insert for operations from finishing to medium machining Can also be used for counterboring Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SNMM 542-QR 4235 |
| Catalog Number | 5750669 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.4300 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 90 ° |
| ISO Code | SNMM 15 06 08-QR 4235 |
| Length | 5/8 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826238030 |
| Width | 5/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | QR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | 542 |
| Insert Style | SNMM |
| Manufacturer's Grade | 4235 |
| Material | CARBIDE |
| Material Grade | K, M, P |
| Maximum Depth of Cut | 0.394 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Square |
| Universal insert for operations from finishing to medium machining |
| Can also be used for counterboring |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
