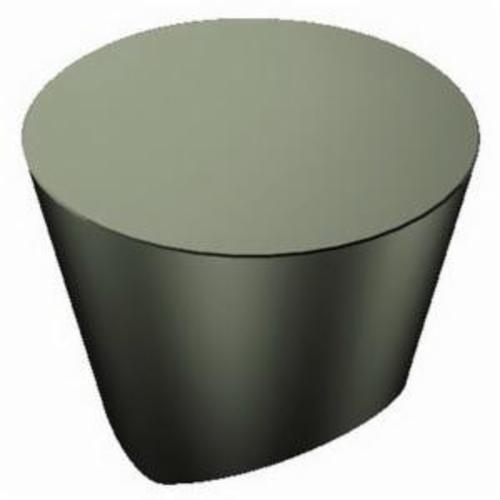

Sandvik Coromant 6010646 T-Max® 1-Sided Turning Insert, RPGX24T0320 670, R-Round, RPGX..S/T Insert, 670, Carbide
RPGX Turning Inserts
1245786
MFG #: 6010646
Sandvik Coromant
57.22000
/ ea
- ANSI Code: RPGX24T0320 670
- Catalog Number: 6010646
- Corner Radius: 1/8 in
- Country of Origin: PL
- Finish: Uncoated
- Gross Weight Per Pack: 3.5500 lb
- ISO Code: RPGX060600T01020 670
- Relief Angle: 11 °
- Series: T-Max®
- Thickness: 1/4 in
- Type: 1-Sided Basic Shape
- UPC 11: 69826254522
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Neutral
- For Use On: Heat Resistant Super Alloys
- Inscribed Circle: 1/4 in
- Insert Size: 24
- Insert Style: RPGX
- Manufacturer's Grade: 670
- Material: Ceramic
- Material Grade: S
- Maximum Depth of Cut: 0.063 in
- Rake: Positive
- Seat Size: 06
- Shape: Round
Sandvik Coromant Turning Insert, 1-Sided, Series: T-Max®, RPGX..S/T Insert, R-Round, 1.8 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/4 in Thickness, 1/8 in Corner Radius, Manufacturer's Grade: 670, ANSI Code: RPGX24T0320 670, ISO Code: RPGX060600T01020 670, 11 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
- Features
| Reliable and secure machining, even in roughing applications |
| Possibility to optimize by using damped Silent Tools™ |
| Excellent surface finish |
| 2 cutting edges |
| Convex bottom and flat surface clamping interface |
| 20 deg face land |
| G tolerance class |
| 0.1 - 0.2 mm/r cutting feed |
| 20 life cycle state |
| Positive rake |
