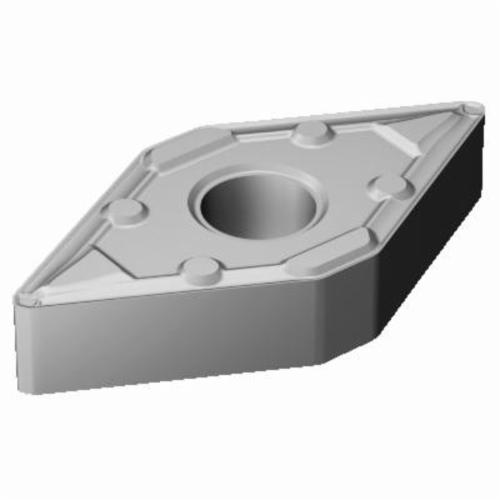

Sandvik Coromant 5731231 T-Max® P Negative Basic Shape Turning Insert, DNMX 431-WF 5015, D-55 deg Diamond, DNMX Insert, 5015
DNMX Turning Inserts
1235184
MFG #: 5731231
Sandvik Coromant
19.94000
/ ea
- Alternate Catalog Number: DNMX 431-WF 5015
- ANSI Code: DNMX 431-WF 5015
- Catalog Number: 5731231
- Corner Radius: 0.0156 in
- Country of Origin: SE
- Finish: Uncoated
- Gross Weight Per Pack: 0.1800 lb
- Hole Diameter: 0.2029 in
- Included Angle: 55 °
- ISO Code: DNMX 15 04 04-WF 5015
- Item Group: 110
- Relief Angle: 0 °
- Series: T-Max® P
- Thickness: 0.1874 in
- UPC 11: 69826228172
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: WF
- Cutting Direction: Neutral
- For Use On: Cast Iron and Steel
- Inscribed Circle: 1/2 in
- Insert Size: 431
- Insert Style: DNMX
- Manufacturer's Grade: 5015
- Material: Carbide
- Material Grade: K, P
- Maximum Depth of Cut: 0.138 in
- Rake: Negative
- Seat Size: 15
- Shape: Rhombic
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMX Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, WF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 5015, ANSI Code: DNMX 431-WF 5015, ISO Code: DNMX 15 04 04-WF 5015, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: P
- Features
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.08 - 0.25 mm/r cutting feed |
| 20 life cycle state |
