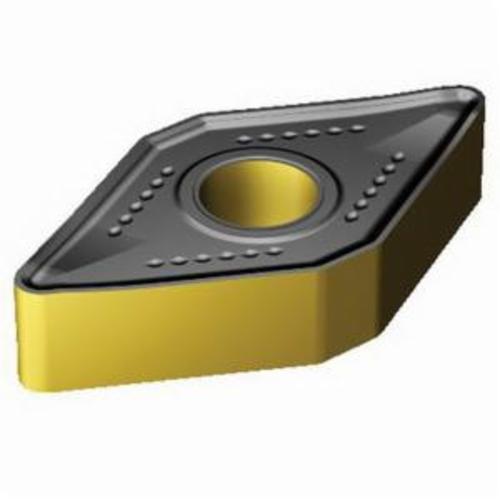

Sandvik Coromant 5731202 T-Max® P 1-Sided Turning Insert, DNMM 444-MR 4225, D-55 deg Diamond, DNMM-MR (ISO P) Insert, 4225
Custom_Product_Images_Illustration
Sandvik Coromant 5731202 T-Max® P 1-Sided Turning Insert, DNMM 444-MR 4225, D-55 deg Diamond, DNMM-MR (ISO P) Insert, 4225
SKU1235180
MFGR #5731202
Your Cost: $22.99/ea
List: T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
ANSI Code DNMM 444-MR 4225 Catalog Number 5731202 Corner Radius 0.0624 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.3500 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMM 15 06 16-MR 4225 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826234530 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MR Cutting Direction Neutral For Use On Steel Inscribed Circle 1/2 in Insert Size 444 Insert Style DNMM Manufacturer's Grade 4225 Material Carbide Material Grade P Maximum Depth of Cut 0.236 in Rake Negative Seat Size 15 Shape Rhombic Machining long chipping materials Can be used universally in a wide range of applications Circumference precision-ground Circumference precision-sintered Straight cutting edge for C, S and T basic shapes, for use as a chamfer insert in boring tools Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance Dedicated grades and geometries for all applications and materials Productive solution with wiper and Xcel technologies Tools featuring high precision coolant for excellent chip breaking Reliable and secure machining, even in roughing applications Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling Negative rake Top and hole clamping mount
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | DNMM 444-MR 4225 |
| Catalog Number | 5731202 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.3500 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMM 15 06 16-MR 4225 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826234530 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MR |
| Cutting Direction | Neutral |
| For Use On | Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 444 |
| Insert Style | DNMM |
| Manufacturer's Grade | 4225 |
| Material | Carbide |
| Material Grade | P |
| Maximum Depth of Cut | 0.236 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Machining long chipping materials |
| Can be used universally in a wide range of applications |
| Circumference precision-ground |
| Circumference precision-sintered |
| Straight cutting edge for C, S and T basic shapes, for use as a chamfer insert in boring tools |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
| Dedicated grades and geometries for all applications and materials |
| Productive solution with wiper and Xcel technologies |
| Tools featuring high precision coolant for excellent chip breaking |
| Reliable and secure machining, even in roughing applications |
| Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling |
| Negative rake |
| Top and hole clamping mount |
