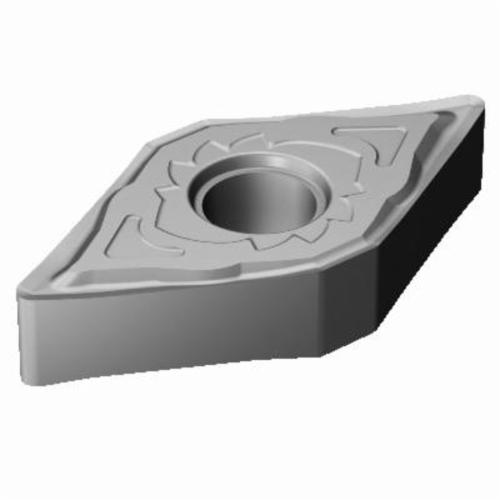

Sandvik Coromant 5909008 T-Max® P Negative Basic Shape Turning Insert, DNGG 433-SGF H13A, D-55 deg Diamond, DNGG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5909008 T-Max® P Negative Basic Shape Turning Insert, DNGG 433-SGF H13A, D-55 deg Diamond, DNGG Insert
SKU1228937
MFGR #5909008
Your Cost: $17.80/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNGG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, SGF Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNGG 433-SGF H13A, ISO Code: DNGG 15 04 12-SGF H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNGG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, SGF Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNGG 433-SGF H13A, ISO Code: DNGG 15 04 12-SGF H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Alternate Catalog Number DNGG 433-SGF H13A ANSI Code DNGG 433-SGF H13A Catalog Number 5909008 Corner Radius 0.0468 in Country of Origin US Finish Uncoated Gross Weight Per Pack 0.0300 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 55 deg lb ISO Code DNGG 15 04 12-SGF H13A Item Group 110 Length 0.6103 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826252982 Width SGF Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SGF Inscribed Circle 1/2 in Insert Size D - 55 deg Diamond Insert Style DNGG Manufacturer's Grade H13A Material CARBIDE Material Grade S Maximum Depth of Cut 3 mm Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.025 mm inscribed circle tolerance Sharp cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.3 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNGG 433-SGF H13A |
| ANSI Code | DNGG 433-SGF H13A |
| Catalog Number | 5909008 |
| Corner Radius | 0.0468 in |
| Country of Origin | US |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg lb |
| ISO Code | DNGG 15 04 12-SGF H13A |
| Item Group | 110 |
| Length | 0.6103 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826252982 |
| Width | SGF |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SGF |
| Inscribed Circle | 1/2 in |
| Insert Size | D - 55 deg Diamond |
| Insert Style | DNGG |
| Manufacturer's Grade | H13A |
| Material | CARBIDE |
| Material Grade | S |
| Maximum Depth of Cut | 3 mm |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.025 mm inscribed circle tolerance |
| Sharp cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.3 mm/r cutting feed |
| 20 life cycle state |
