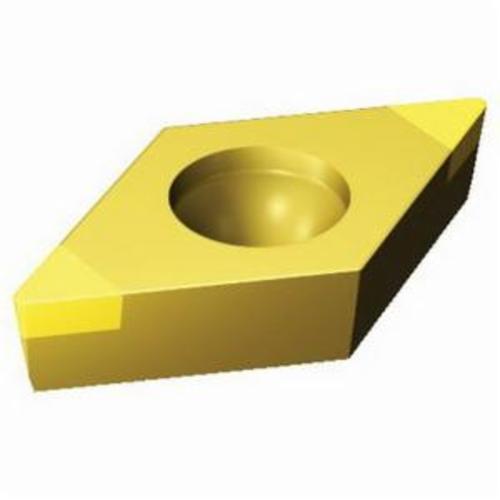

Sandvik Coromant 5781782 CoroTurn® 107 1-Sided Turning Insert, DCGW2(1.5)2S0330F 7015, D-55 deg Diamond, 7015, Carbide
DCGW Turning Inserts
1228763
MFG #: 5781782
Sandvik Coromant
82.43000
/ ea
- Alternate Catalog Number: DCGW2(1.5)2S0330F 7015
- ANSI Code: DCGW2(1.5)2S0330F 7015
- Catalog Number: 5781782
- Corner Radius: 0.0312 in
- Country of Origin: PL
- Finish: PVD Coated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.1102 in
- Included Angle: 55 deg
- ISO Code: DCGW070208S01030F 7015
- Item Group: 620
- Length: 0.3051 in
- Relief Angle: 7 deg LB
- Series: CoroTurn® 107
- Thickness: 0.0937 in
- Type: 1-Sided
- UPC 11: 69826252722
- Width: Flat Top
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: Flat Top
- Inscribed Circle: 1/4 in
- Insert Size: 0.2 mm
- Insert Style: DCGW..S..F
- Manufacturer's Grade: 7015
- Material: Carbide
- Material Grade: H
- Maximum Depth of Cut: 0.2 mm
- Shape: D-55 deg Diamond
Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn® 107, DCGW..S..F Insert, D-55 deg Diamond, 0.2 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 0.3051 in Length, Flat Top Chipbreaker, 0.0312 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 7015, ANSI Code: DCGW2(1.5)2S0330F 7015, ISO Code: DCGW070208S01030F 7015, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: H
- Features
| 7 deg major clearance |
| 0.1 mm W face land |
| S cutting edge condition |
| 2 cutting edges |
| 40 - 60 deg countersunk hole and flat surface clamping interface |
| 30 deg face land |
| 2.1 mm L effective cutting edge |
| G tolerance class |
| 0.05 - 0.3 mm/r cutting feed |
| 20 life cycle state |
| Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component |
| 7 deg clearance angle |
| Screw clamping ensures stability and unobstructed chip flow |
| Holders and insert geometries with conventional and CoroTurn HP design |
| For longitudinal turning and profiling |
| Positive rake |
| Screw clamp mount |
