Sandvik Coromant

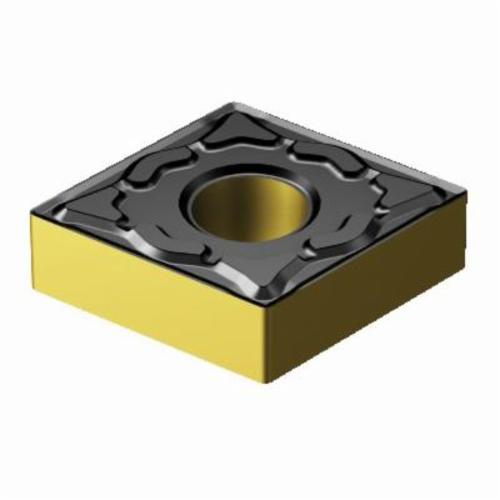

Sandvik Coromant 6868484 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-KF 3225, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6868484 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-KF 3225, C-80 deg Diamond, CNMG Insert
SKU1237329
MFGR #6868484
Your Cost: $19.38/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, KF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: CNMG 432-KF 3225, ISO Code: CNMG 12 04 08-KF 3225, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, KF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: CNMG 432-KF 3225, ISO Code: CNMG 12 04 08-KF 3225, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number CNMG 432-KF 3225 ANSI Code CNMG 432-KF 3225 Catalog Number 6868484 Corner Radius 0.0312 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2400 lb Hole Diameter 0.2029 in Included Angle 80 ° ISO Code CNMG 12 04 08-KF 3225 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KF Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 1/2 in Insert Size 432 Insert Style CNMG Manufacturer's Grade 3225 Material Carbide Material Grade K Maximum Depth of Cut 0.079 in Rake Negative Seat Size 12 Shape Rhombic HQ chipbreaker - general purpose chipbreaker for medium machining PR930 grade hard TiCN base PVD coated super micrograin carbide Low cutting speed, precise cutting with sharp edge +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.3 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 432-KF 3225 |
| ANSI Code | CNMG 432-KF 3225 |
| Catalog Number | 6868484 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 08-KF 3225 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KF |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 1/2 in |
| Insert Size | 432 |
| Insert Style | CNMG |
| Manufacturer's Grade | 3225 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 0.079 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| HQ chipbreaker - general purpose chipbreaker for medium machining |
| PR930 grade hard TiCN base PVD coated super micrograin carbide |
| Low cutting speed, precise cutting with sharp edge |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.3 mm/r cutting feed |
