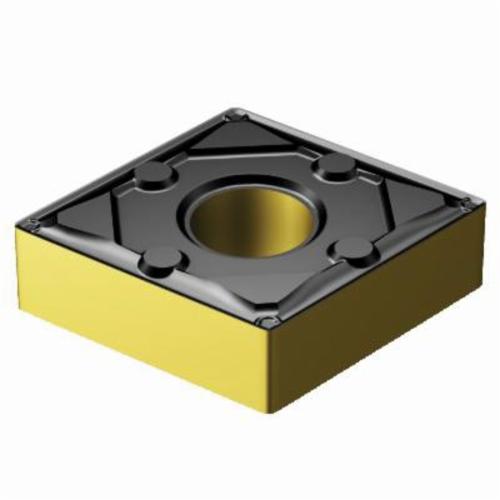

Sandvik Coromant 6868443 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-WF 3210, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6868443 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-WF 3210, C-80 deg Diamond, CNMG Insert
SKU1238013
MFGR #6868443
Your Cost: $22.31/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: CNMG 432-WF 3210, ISO Code: CNMG 12 04 08-WF 3210, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: CNMG 432-WF 3210, ISO Code: CNMG 12 04 08-WF 3210, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number CNMG 432-WF 3210 ANSI Code CNMG 432-WF 3210 Catalog Number 6868443 Corner Radius 0.0312 in Country of Origin US Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2400 lb Hole Diameter 0.2029 in Included Angle 80 ° ISO Code CNMG 12 04 08-WF 3210 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WF Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 1/2 in Insert Size 432 Insert Style CNMG Manufacturer's Grade 3210 Material Carbide Material Grade K Maximum Depth of Cut 0.157 in Rake Negative Seat Size 12 Shape Rhombic Minimizes notching Prevents burrs Reduces edge build-up Prevents fracture by thin film coating Prevents chattering and cutting edge damage at steel machining HQ chipbreaker - general purpose chipbreaker for medium machining CA6525 grade specialized carbide substrate for stainless steel cutting, excellent notching resistance and toughness First choice for general cutting of stainless steel, from finishing to roughing and continuous to interruption Improved machining economy Excellent surface finish Eliminate expensive grinding operations Undisturbed production Less need for supervision 0.1 - 0.5 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 432-WF 3210 |
| ANSI Code | CNMG 432-WF 3210 |
| Catalog Number | 6868443 |
| Corner Radius | 0.0312 in |
| Country of Origin | US |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 08-WF 3210 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WF |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 1/2 in |
| Insert Size | 432 |
| Insert Style | CNMG |
| Manufacturer's Grade | 3210 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 0.157 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Minimizes notching |
| Prevents burrs |
| Reduces edge build-up |
| Prevents fracture by thin film coating |
| Prevents chattering and cutting edge damage at steel machining |
| HQ chipbreaker - general purpose chipbreaker for medium machining |
| CA6525 grade specialized carbide substrate for stainless steel cutting, excellent notching resistance and toughness |
| First choice for general cutting of stainless steel, from finishing to roughing and continuous to interruption |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.1 - 0.5 mm/r cutting feed |
