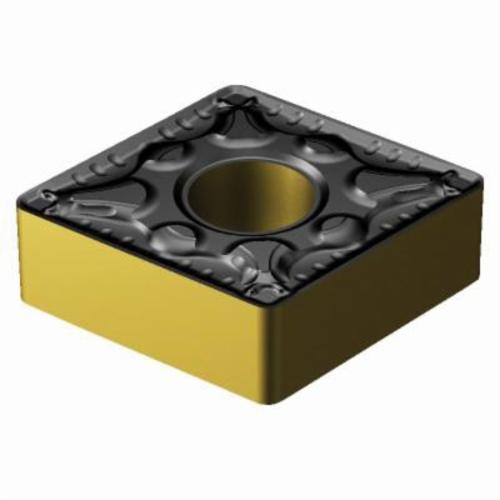

Sandvik Coromant 6707384 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-PM 4305, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6707384 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-PM 4305, C-80 deg Diamond, CNMG Insert
SKU1238079
MFGR #6707384
Your Cost: $34.31/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7.2 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, PM Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: CNMG 543-PM 4305, ISO Code: CNMG 16 06 12-PM 4305, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7.2 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, PM Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: CNMG 543-PM 4305, ISO Code: CNMG 16 06 12-PM 4305, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number CNMG 543-PM 4305 ANSI Code CNMG 543-PM 4305 Catalog Number 6707384 Corner Radius 0.047 in Country of Origin IN Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.4900 lb Hole Diameter 1/4 in Included Angle 80 ° ISO Code CNMG 16 06 12-PM 4305 Item Group 112 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 5/8 in Insert Size 543 Insert Style CNMG Manufacturer's Grade 4305 Material Carbide Material Grade K, P Maximum Depth of Cut 0.283 in Rake Negative Seat Size 16 Shape Rhombic T5305 grade fine grained substrate with a low cobalt content Thick layer of MT-CVD coating with a layer of Al2O3 on the surface Special finish for coating Top performance for machining gray cast iron Material with the highest abrasion resistance of the 5300 series High cutting speeds Continuous to slightly interrupted cut Rounded edges
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 543-PM 4305 |
| ANSI Code | CNMG 543-PM 4305 |
| Catalog Number | 6707384 |
| Corner Radius | 0.047 in |
| Country of Origin | IN |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.4900 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 16 06 12-PM 4305 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | 543 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4305 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.283 in |
| Rake | Negative |
| Seat Size | 16 |
| Shape | Rhombic |
| T5305 grade fine grained substrate with a low cobalt content |
| Thick layer of MT-CVD coating with a layer of Al2O3 on the surface |
| Special finish for coating |
| Top performance for machining gray cast iron |
| Material with the highest abrasion resistance of the 5300 series |
| High cutting speeds |
| Continuous to slightly interrupted cut |
| Rounded edges |
