Sandvik Coromant

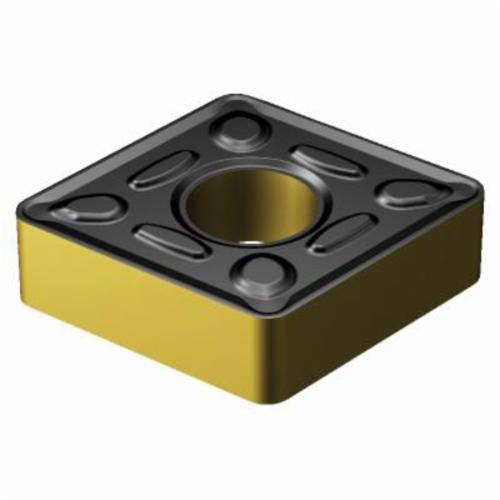

Sandvik Coromant 6532316 T-Max® P Negative Basic Shape Turning Insert, CNMG 646-HM 4325, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6532316 T-Max® P Negative Basic Shape Turning Insert, CNMG 646-HM 4325, C-80 deg Diamond, CNMG Insert
SKU1250189
MFGR #6532316
Your Cost: $36.74/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, HM Chipbreaker, 0.0937 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 646-HM 4325, ISO Code: CNMG 19 06 24-HM 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, HM Chipbreaker, 0.0937 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 646-HM 4325, ISO Code: CNMG 19 06 24-HM 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number CNMG 646-HM 4325 ANSI Code CNMG 646-HM 4325 Catalog Number 6532316 Corner Radius 0.0937 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0600 lb Hand of Insert Neutral Hole Diameter 0.312 in Included Angle 80 deg ISO Code CNMG 19 06 24-HM 4325 Item Group 112 Length 0.7615 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape Width MTCVD Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker HM Inscribed Circle 3/4 in Insert Size CNMG 19 06 24-HM 4325 Insert Style CNMG Manufacturer's Grade 4325 Material Carbide Material Grade K/P Maximum Depth of Cut 10 mm Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.3 - 1.2 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 646-HM 4325 |
| ANSI Code | CNMG 646-HM 4325 |
| Catalog Number | 6532316 |
| Corner Radius | 0.0937 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.312 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 19 06 24-HM 4325 |
| Item Group | 112 |
| Length | 0.7615 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| Width | MTCVD |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | HM |
| Inscribed Circle | 3/4 in |
| Insert Size | CNMG 19 06 24-HM 4325 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 10 mm |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.3 - 1.2 mm/r cutting feed |
| 20 life cycle state |
