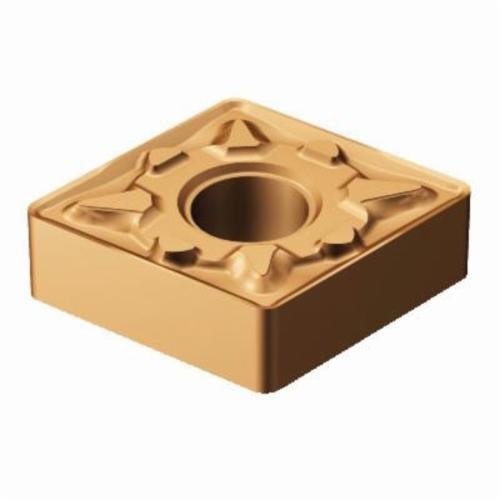

Sandvik Coromant 6292962 T-Max® P Negative Basic Shape Turning Insert, CNMG 321-MM 1115, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6292962 T-Max® P Negative Basic Shape Turning Insert, CNMG 321-MM 1115, C-80 deg Diamond, CNMG Insert
SKU867673
MFGR #6292962
Your Cost: $9.00/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, MM Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CNMG 321-MM 1115, ISO Code: CNMG 09 03 04-MM 1115, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, MM Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CNMG 321-MM 1115, ISO Code: CNMG 09 03 04-MM 1115, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
ANSI Code CNMG 321-MM 1115 Catalog Number 6292962 Corner Radius 0.016 in Country of Origin SE Finish PVD-TiAlN+AlCr2O3 Coated Gross Weight Per Pack 0.1000 lb Hole Diameter 0.15 in Included Angle 80 ° ISO Code CNMG 09 03 04-MM 1115 Relief Angle 0 ° Series T-Max® P Thickness 1/8 in UPC 11 69826273309 UPC 12 69826273309 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 3/8 in Insert Size 321 Insert Style CNMG Manufacturer's Grade 1115 Material Carbide Material Grade M, S Maximum Depth of Cut 0.157 in Rake Negative Seat Size 09 Shape Rhombic Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.4 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG 321-MM 1115 |
| Catalog Number | 6292962 |
| Corner Radius | 0.016 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN+AlCr2O3 Coated |
| Gross Weight Per Pack | 0.1000 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 09 03 04-MM 1115 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/8 in |
| UPC 11 | 69826273309 |
| UPC 12 | 69826273309 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 3/8 in |
| Insert Size | 321 |
| Insert Style | CNMG |
| Manufacturer's Grade | 1115 |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.157 in |
| Rake | Negative |
| Seat Size | 09 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.4 mm/r cutting feed |
