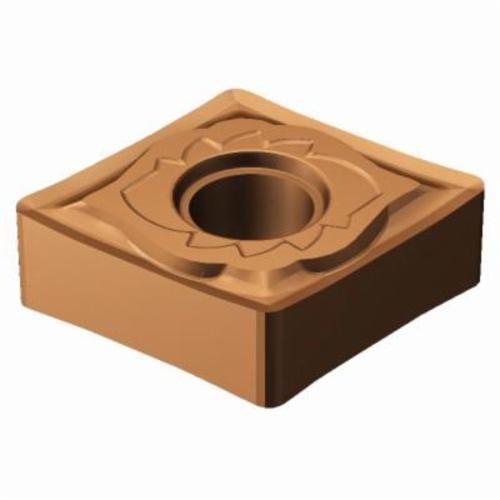

Sandvik Coromant 5908961 T-Max® P Negative Basic Shape Turning Insert, CNGG 432-SGF 1115, C-80 deg Diamond, CNGG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5908961 T-Max® P Negative Basic Shape Turning Insert, CNGG 432-SGF 1115, C-80 deg Diamond, CNGG Insert
SKU1231593
MFGR #5908961
Your Cost: $19.45/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNGG Insert, C-80 deg Diamond, 3.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, SGF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CNGG 432-SGF 1115, ISO Code: CNGG 12 04 08-SGF 1115, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNGG Insert, C-80 deg Diamond, 3.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, SGF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CNGG 432-SGF 1115, ISO Code: CNGG 12 04 08-SGF 1115, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number CNGG 432-SGF 1115 ANSI Code CNGG 432-SGF 1115 Catalog Number 5908961 Corner Radius 0.0312 in Country of Origin US Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 80 deg ISO Code CNGG 12 04 08-SGF 1115 Item Group 110 Length 0.5077 in Relief Angle 0 deg LB Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826252795 Width M, S Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SGF Inscribed Circle 1/2 in Insert Size CNGG 12 04 08-SGF 1115 Insert Style CNGG Manufacturer's Grade 1115 Material Carbide Material Grade M/S Maximum Depth of Cut 3.5 mm Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.025 mm inscribed circle tolerance Sharp cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.35 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNGG 432-SGF 1115 |
| ANSI Code | CNGG 432-SGF 1115 |
| Catalog Number | 5908961 |
| Corner Radius | 0.0312 in |
| Country of Origin | US |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 deg |
| ISO Code | CNGG 12 04 08-SGF 1115 |
| Item Group | 110 |
| Length | 0.5077 in |
| Relief Angle | 0 deg LB |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826252795 |
| Width | M, S |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SGF |
| Inscribed Circle | 1/2 in |
| Insert Size | CNGG 12 04 08-SGF 1115 |
| Insert Style | CNGG |
| Manufacturer's Grade | 1115 |
| Material | Carbide |
| Material Grade | M/S |
| Maximum Depth of Cut | 3.5 mm |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.025 mm inscribed circle tolerance |
| Sharp cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.35 mm/r cutting feed |
