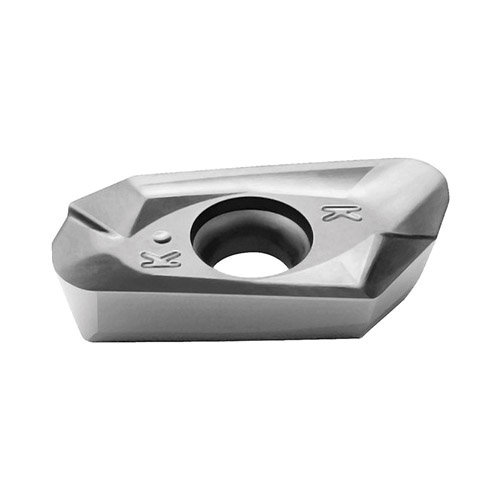

Valenite 5004875 Positive Single Sided Indexable Milling Insert, ZDGT150404R-K85 WK10 ANSI, Rhombic, ZDGT Insert
ZDGT Milling Inserts
1082494
MFG #: ZDGT150404R-K85WK10
Walter (Valentine)
23.53000
/ ea
- ANSI Code: ZDGT150404R-K85 WK10
- Catalog Number: ZDGT150404R-K85WK10
- Corner Radius: 0.4 mm
- Country of Origin: DE
- Finish: Uncoated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Right
- Hole Diameter: 4.4 mm
- ISO Code: ZDGT150404R-K85 WK10
- Lead Angle: 15 deg
- Length: 16.2 mm
- Thickness: 4.76 mm
- Type: Positive Single Sided
- Width: 10.5 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: K85
- Insert Style: ZDGT
- Manufacturer's Grade: WK10
- Material: Carbide
- Material Grade: N
- Rake: 25 deg
- Shape: Rhombic
VALENITE Indexable Milling Insert, Positive Single Sided, ZDGT Insert, Rhombic, 4.76 mm Thickness, 10.5 mm Width, 16.2 mm Length, K85 Chipbreaker, 0.4 mm Corner Radius, 25 deg Rake, 15 deg Lead Angle, 4.4 mm Hole Dia, Manufacturer's Grade: WK10, ANSI Code: ZDGT150404R-K85 WK10, ISO Code: ZDGT150404R-K85 WK10, Right Hand, Carbide, Uncoated, Material Grade: N
- Features
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
