Walter (Valentine)

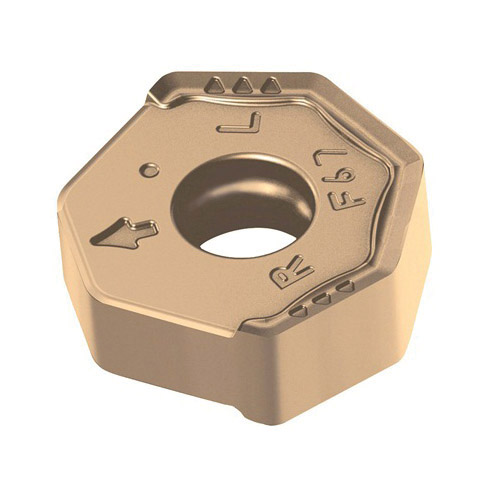

Valenite Tiger-tec® 6881231 Indexable Milling Insert, XNGX0705ANN-F67 WXM15 ANSI, XNGX Insert, Carbide, WXM15
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite Tiger-tec® 6881231 Indexable Milling Insert, XNGX0705ANN-F67 WXM15 ANSI, XNGX Insert, Carbide, WXM15
SKUPDW~12068056
MFGR #XNGX0705ANN-F67WXM15
$/ea
VALENITE Tiger-tec® Indexable Milling Insert, XNGX Insert, 14.5 mm Inscribed Circle, 4.6 mm Thickness, F67 Chipbreaker, 0.8 mm Corner Radius, 16 deg Rake, 0 deg Lead Angle, 4 mm Hole Dia, Manufacturer's Grade: WXM15, ANSI Code: XNGX0705ANN-F67 WXM15, ISO Code: XNGX0705ANN-F67 WXM15, Neutral Hand, Carbide, PVD Coated, Material Grade: O
VALENITE Tiger-tec® Indexable Milling Insert, XNGX Insert, 14.5 mm Inscribed Circle, 4.6 mm Thickness, F67 Chipbreaker, 0.8 mm Corner Radius, 16 deg Rake, 0 deg Lead Angle, 4 mm Hole Dia, Manufacturer's Grade: WXM15, ANSI Code: XNGX0705ANN-F67 WXM15, ISO Code: XNGX0705ANN-F67 WXM15, Neutral Hand, Carbide, PVD Coated, Material Grade: O
ANSI Code XNGX0705ANN-F67 WXM15 Catalog Number XNGX0705ANN-F67WXM15 Corner Radius 0.8 mm Country of Origin DE Finish PVD-TiAlN+TiN Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 4 mm ISO Code XNGX0705ANN-F67 WXM15 Lead Angle 45 ° Length 7 mm Material Application Cast Iron, Stainless Steel and Steel Series Tiger?tec® Sub Brand Tiger-tec® Thickness 5.56 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker F67 Inscribed Circle 14.5 mm Insert Size 0705 Insert Style XNGX Manufacturer's Grade WXM15 Material Carbide Material Grade K, M, P Shape Irregular F67 Geometry - The easy cutting one For good machining conditions Low cutting force Medium feed rates +/-0.025 mm cutting edge tolerance +/-0.025 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 5.7 mm width face chamfer 2 cutting edges 45 deg approach
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | XNGX0705ANN-F67 WXM15 |
| Catalog Number | XNGX0705ANN-F67WXM15 |
| Corner Radius | 0.8 mm |
| Country of Origin | DE |
| Finish | PVD-TiAlN+TiN Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 4 mm |
| ISO Code | XNGX0705ANN-F67 WXM15 |
| Lead Angle | 45 ° |
| Length | 7 mm |
| Material Application | Cast Iron, Stainless Steel and Steel |
| Series | Tiger?tec® |
| Sub Brand | Tiger-tec® |
| Thickness | 5.56 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | F67 |
| Inscribed Circle | 14.5 mm |
| Insert Size | 0705 |
| Insert Style | XNGX |
| Manufacturer's Grade | WXM15 |
| Material | Carbide |
| Material Grade | K, M, P |
| Shape | Irregular |
| F67 Geometry - The easy cutting one |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 5.7 mm width face chamfer |
| 2 cutting edges |
| 45 deg approach |
