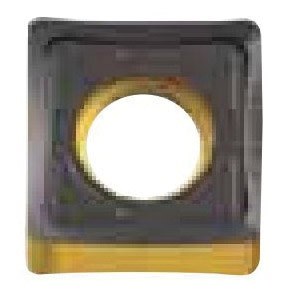

Valenite Tiger-tec® 5535486 Indexable Milling Insert, XNGX1205ZNN-F67 WAK15 ANSI, XNGX Insert, Carbide, WAK15
XNGX Milling Inserts
PDW~9960782
MFG #: XNGX1205ZNN-F67WAK15
Walter (Valentine)
39.50000
/ ea
- ANSI Code: XNGX1205ZNN-F67 WAK15
- Catalog Number: XNGX1205ZNN-F67WAK15
- Corner Radius: 1 mm
- Country of Origin: DE
- Finish: CVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Neutral
- Hole Diameter: 6.1 mm
- ISO Code: XNGX1205ZNN-F67 WAK15
- Lead Angle: 0 deg
- Length: 12.7 mm
- Sub Brand: Tiger-tec®
- Thickness: 6.47 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: F67
- Inscribed Circle: Tiger?tec®
- Insert Style: XNGX
- Manufacturer's Grade: WAK15
- Material: Carbide
- Material Grade: K
- Rake: 16 deg
VALENITE Tiger-tec® Indexable Milling Insert, XNGX Insert, 12.7 mm Inscribed Circle, 6.47 mm Thickness, 12.7 mm Length, F67 Chipbreaker, 1 mm Corner Radius, 16 deg Rake, 0 deg Lead Angle, 6.1 mm Hole Dia, Manufacturer's Grade: WAK15, ANSI Code: XNGX1205ZNN-F67 WAK15, ISO Code: XNGX1205ZNN-F67 WAK15, Neutral Hand, Carbide, CVD Coated, Material Grade: K
- Features
| F67 Geometry - The easy cutting one |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 4 mm width face chamfer |
| 2 cutting edges |
