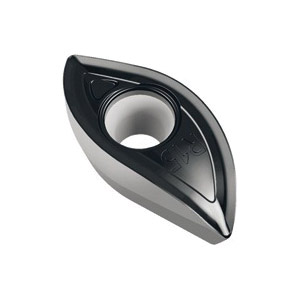

Valenite Tiger-tec® Silver 6072401 Positive Single Sided Indexable Milling Insert, XDMT2004127R-F55 WKP25S ANSI
XDMT Milling Inserts
PDW~9960639
MFG #: XDMT2004127R-F55WKP25S
Walter (Valentine)
31.20000
/ ea
- ANSI Code: XDMT2004127R-F55 WKP25S
- Catalog Number: XDMT2004127R-F55WKP25S
- Corner Radius: 0.63 mm
- Country of Origin: DE
- Finish: CVD Coated
- Gross Weight Per Pack: 0.0300 lb
- Hand of Insert: Right
- ISO Code: XDMT2004127R-F55 WKP25S
- Lead Angle: 15 deg
- Length: 19.94 mm
- Sub Brand: Tiger-tec®
- Thickness: 4.68 mm
- Type: Positive Single Sided
- Width: 11.3 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: F55
- Insert Style: Tiger?tec® Silver
- Manufacturer's Grade: WKP25S
- Material: Carbide
- Material Grade: K/P
- Rake: 16 deg
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
| 12.7 mm maximum depth of cut |
| 12.7 mm ball nose radius |
