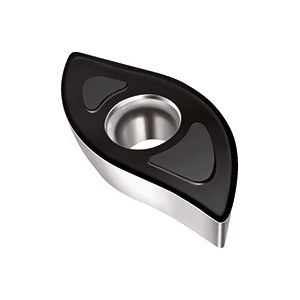

Valenite Tiger-tec® Silver 6370779 Positive Single Sided Indexable Milling Insert, XDGT2004127R-D57 WSP45S ANSI
XDGT Milling Inserts
PDW~10507443
MFG #: XDGT2004127R-D57WSP45S
Walter (Valentine)
45.00000
/ ea
- ANSI Code: XDGT2004127R-D57 WSP45S
- Catalog Number: XDGT2004127R-D57WSP45S
- Corner Radius: 0.63 mm
- Country of Origin: DE
- Finish: PVD-TiAlN+Al2O3 (Al) Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Right
- ISO Code: XDGT2004127R-D57 WSP45S
- Lead Angle: 15 °
- Length: 19.94 mm
- Material Application: Stainless Steel, Steel, Super Alloys and Titanium
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 4.76 mm
- Type: Single Sided
- Width: 11.3 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D57
- Insert Size: 2004127
- Insert Style: XDGT
- Manufacturer's Grade: WSP45S
- Material: Carbide
- Material Grade: M, P, S
- Rake: Positive
- Shape: Irregular
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliabilityExtremely smooth rake face for optimum tribochemical wear resistanceSilver flank face indicator layer for extremely easy wear detection |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
| 12.7 mm ball nose radius |
