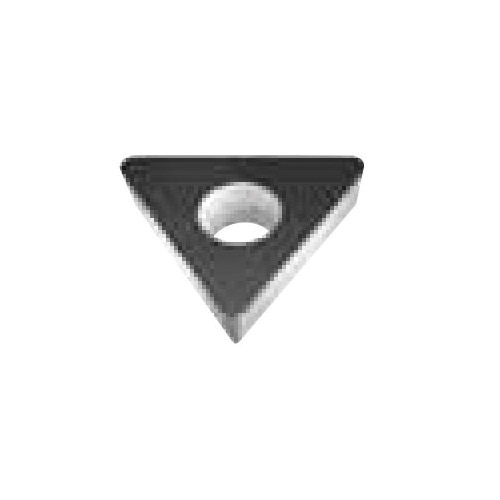

Valenite Tiger-tec® Silver 7028070 Positive Indexable Milling Insert, TPJW33PPN WKP25S ANSI, Triangle, TPJW Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 7028070 Positive Indexable Milling Insert, TPJW33PPN WKP25S ANSI, Triangle, TPJW Insert
SKUPDW~12584952
MFGR #TPJW33PPNWKP25S
Your Cost: $27.02/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code TPJW33PPN WKP25S Catalog Number TPJW33PPNWKP25S Country of Origin DE Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 4.4 mm ISO Code TPJW1604PPN WKP25S Lead Angle 11 ° Material Application Cast Iron and Steel Series Tiger?tec® Silver Sub Brand Tiger-tec® Thickness 4.76 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker A57 Inscribed Circle 9.52 mm Insert Size 1604 Insert Style TPJW Manufacturer's Grade WKP25S Material Carbide Material Grade K, P Rake Positive Shape Triangle Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection 0.05 to 0.15 mm inscribed circle tolerance +/-0.025 mm thickness tolerance 1.2 mm width face chamfer 3 cutting edges 40 to 60 deg double countersink hole
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | TPJW33PPN WKP25S |
| Catalog Number | TPJW33PPNWKP25S |
| Country of Origin | DE |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 4.4 mm |
| ISO Code | TPJW1604PPN WKP25S |
| Lead Angle | 11 ° |
| Material Application | Cast Iron and Steel |
| Series | Tiger?tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 4.76 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | A57 |
| Inscribed Circle | 9.52 mm |
| Insert Size | 1604 |
| Insert Style | TPJW |
| Manufacturer's Grade | WKP25S |
| Material | Carbide |
| Material Grade | K, P |
| Rake | Positive |
| Shape | Triangle |
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 3 cutting edges |
| 40 to 60 deg double countersink hole |
