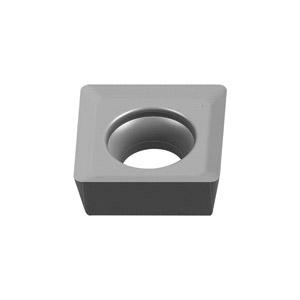

Valenite Tiger-tec® Silver 5169035 Positive Single Sided Indexable Milling Insert, SPHT221-G88 WK10 ANSI, Square
SPHT Milling Inserts
PDW~9958637
MFG #: SPHT221-G88WK10
Walter (Valentine)
17.80000
/ ea
- ANSI Code: SPHT060304-G88 WK10
- Catalog Number: SPHT221-G88WK10
- Corner Radius: 0.4 mm
- Country of Origin: DE
- Finish: Uncoated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Right
- Hole Diameter: 2.8 mm
- ISO Code: SPHT060304-G88 WK10
- Lead Angle: 11 °
- Length: 6.35 mm
- Material Application: Cast Iron
- Series: Tiger?tec®
- Sub Brand: Tiger-tec®
- Thickness: 3.18 mm
- Type: Single Sided
- Width: 6.35 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: G88
- Inscribed Circle: 6.35 mm
- Insert Size: 060304
- Insert Style: SPHT
- Manufacturer's Grade: WK10
- Material: Carbide
- Material Grade: K
- Rake: Positive
- Shape: Square
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| G88 Geometry - The sharp one |
| For machining aluminum |
| Low cutting force |
| Sharp cutting edges |
| Three waves on the flank face |
| +/-0.013 mm cutting edge tolerance |
| +/-0.013 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
