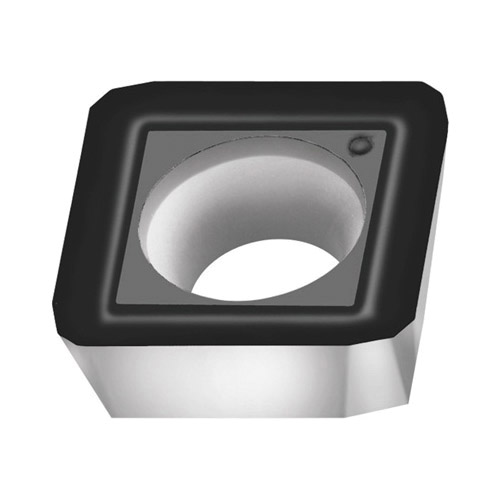

Walter SPGT43EDR-F55WSP45S Walter Tiger-tec® Silver 7057784 Positive Single Sided Indexable Milling Insert, SPGT43EDR-F55 WSP45S ANSI, Square
SPGT Milling Inserts
PDW~12584851
MFG #: SPGT43EDR-F55WSP45S
Walter (Valentine)
23.00000
/ ea
- ANSI Code: SPGT43EDR-F55 WSP45S
- Catalog Number: SPGT43EDR-F55WSP45S
- Corner Radius: 0.5 mm
- Finish: PVD-TiAlN+Al2O3 (Al) Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 5.5 mm
- ISO Code: SPGT1204EDR-F55 WSP45S
- Lead Angle: 75 °
- Length: 12.7 mm
- Material Application: Stainless Steel, Steel, Super Alloys and Titanium
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 4.76 mm
- Type: Single Sided
- Width: 12.7 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: F55
- Inscribed Circle: 12.7 mm
- Insert Size: 1204
- Insert Style: SPGT
- Manufacturer's Grade: WSP45S
- Material: Carbide
- Material Grade: M, P, S
- Rake: Positive
- Shape: Square
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.25 mm width face chamfer |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
| 75 deg approach |
