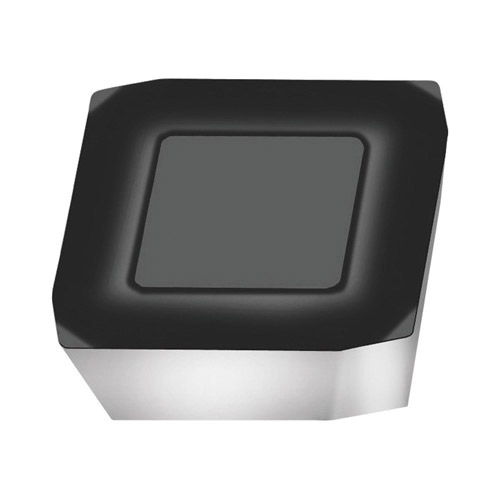

Walter SPFR43EDRWKP25S Walter Tiger-tec® Silver 7028058 Positive Single Sided Indexable Milling Insert, SPFR43EDR WKP25S ANSI, Square
SPFR Milling Inserts
PDW~12584848
MFG #: SPFR43EDRWKP25S
Walter (Valentine)
26.40000
/ ea
- ANSI Code: SPFR1204EDR WKP25S
- Catalog Number: SPFR43EDRWKP25S
- Corner Radius: 0.5 mm
- Finish: CVD-TiCN+Al2O3+TiCN Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- ISO Code: SPFR1204EDR WKP25S
- Length: 12.7 mm
- Material Application: Cast Iron and Steel
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 4.76 mm
- Width: 12.7 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: F57
- Inscribed Circle: 12.7 mm
- Insert Size: 1204
- Insert Style: SPFR
- Manufacturer's Grade: WKP25S
- Material: Carbide
- Material Grade: K, P
- Rake: Positive
- Shape: Square
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| +/-0.013 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
| 2 mm width face chamfer |
| 4 cutting edges |
| 75 deg approach |
