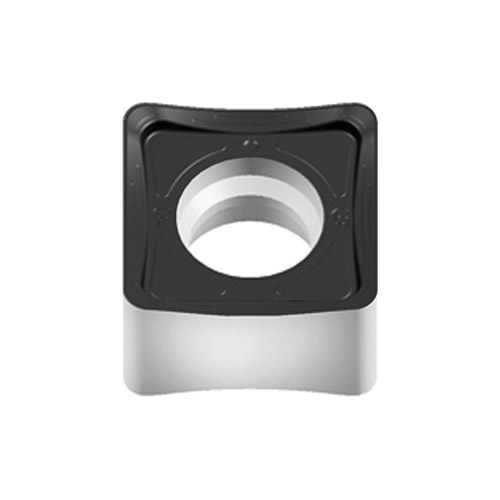

Valenite Tiger-tec® Silver 5887117 Negative Indexable Milling Insert, SNMX120520-D27 WKP35S ANSI, Square, SNMX Insert
SNMX Milling Inserts
PDW~9958545
MFG #: SNMX120520-D27WKP35S
Walter (Valentine)
22.60000
/ ea
- ANSI Code: SNMX120520-D27 WKP35S
- Catalog Number: SNMX120520-D27WKP35S
- Corner Radius: 2 mm
- Country of Origin: DE
- Finish: CVD-TiCN+Al2O3+TiCN Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 6.1 mm
- ISO Code: SNMX120520-D27 WKP35S
- Lead Angle: 0 °
- Length: 12.7 mm
- Material Application: Cast Iron and Steel
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 5.56 mm
- Width: 12.7 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D27
- Inscribed Circle: 12.7 mm
- Insert Size: 120520
- Insert Style: SNMX
- Manufacturer's Grade: WKP35S
- Material: Carbide
- Material Grade: K, P
- Rake: Negative
- Shape: Square
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For machining cast iron materials |
| For sand inclusions or casting skin |
| Maximum process reliability |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 4 cutting edges |
