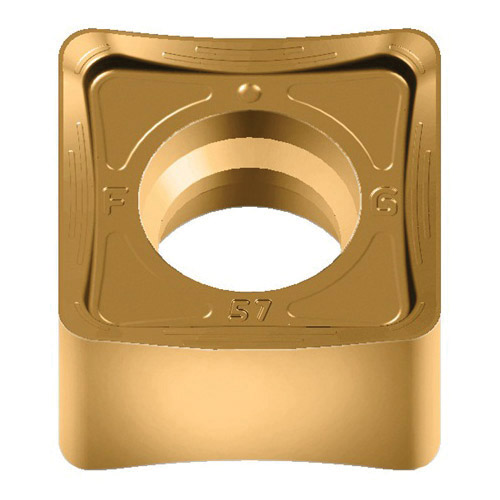

Valenite Tiger-tec® Gold 7170605 Negative Indexable Milling Insert, SNMX120512-F57 WKP35G ANSI, Square, SNMX Insert
SNMX Milling Inserts
PDW~12584841
MFG #: SNMX120512-F57WKP35G
Walter (Valentine)
27.10000
/ ea
- ANSI Code: SNMX120512-F57 WKP35G
- Catalog Number: SNMX120512-F57WKP35G
- Corner Radius: 1.2 mm
- Country of Origin: DE
- Finish: CVD-TiAlN+TiN Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 6.1 mm
- ISO Code: SNMX120512-F57 WKP35G
- Lead Angle: 0 °
- Length: 12.7 mm
- Material Application: Cast Iron and Steel
- Series: Tiger?tec® Gold
- Sub Brand: Tiger-tec®
- Thickness: 5.56 mm
- Width: 12.7 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: F57
- Inscribed Circle: 12.7 mm
- Insert Size: 120512
- Insert Style: SNMX
- Manufacturer's Grade: WKP35G
- Material: Carbide
- Material Grade: K, P
- Rake: Negative
- Shape: Square
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
- Features
| F57 Geometry - The universal one |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| Two waves on the flank face |
| Optimized wear characteristics for a significantly longer tool life |
| Optimum cutting data due to a reduction in visible wear rate |
| Maximum process reliability thanks to the tough cutting edge |
| Gold colored top layer provides optimum wear detection |
| Excellent combination of wear resistance and toughness for milling |
| For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 4 cutting edges |
